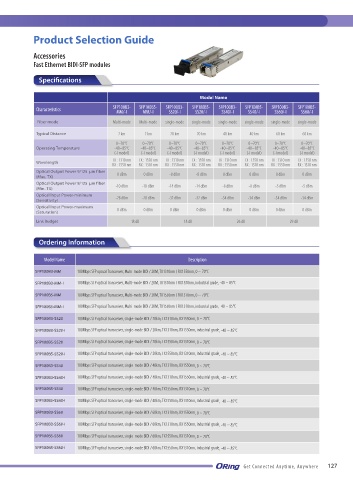

Product Selection Guide

Accessories
Fast Ethernet BIDI-SFP modules

Specifications

Model Name
Characteristics SFP100B3- SFP100B5- SFP100B3- SFP100B5- SFP100B3- SFP100B5- SFP100B3- SFP100B5-
SS20/-I
MM/-I
MM/-I
SS60/-I
SS60/-I
SS40/-I
SS40/-I
SS20/-I
Fiber mode Multi-mode Multi-mode single-mode single-mode single-mode single-mode single-mode single-mode
Typical Distance 2 km 2 km 20 km 20 km 40 km 40 km 60 km 60 km
0~70°C 0~70°C 0~70°C 0~70°C 0~70°C 0~70°C 0~70°C 0~70°C
Operating Temperature -40~85°C -40~85°C -40~85°C -40~85°C -40~85°C -40~85°C -40~85°C -40~85°C
(-I model) (-I model) (-I model) (-I model) (-I model) (-I model) (-I model) (-I model)
TX : 1310 nm TX : 1550 nm TX : 1310 nm TX : 1550 nm TX : 1310 nm TX : 1550 nm TX : 1310 nm TX : 1550 nm
Wavelength
RX : 1550 nm RX : 1310 nm RX : 1550 nm RX : 1310 nm RX : 1550 nm RX : 1310 nm RX : 1550 nm RX : 1310 nm
Optical Output Power 9/125 μm fiber
(Max. TX) 0 dBm 0 dBm -8 dBm -8 dBm 0 dBm 0 dBm 0 dBm 0 dBm
Optical Output Power 9/125 μm fiber
(Min. TX) -10 dBm -10 dBm -14 dBm -14 dBm -8 dBm -8 dBm -5 dBm -5 dBm
Optical Input Power-minimum
(Sensitivity) -28 dBm -28 dBm -32 dBm -32 dBm -34 dBm -34 dBm -34 dBm -34 dBm
Optical Input Power-maximum
(Saturation) 0 dBm 0 dBm 0 dBm 0 dBm 0 dBm 0 dBm 0 dBm 0 dBm
Link Budget 18 dB 18 dB 26 dB 29 dB

Ordering Information

Model Name Description
SFP100B3-MM 100Mbps SFP optical Transceiver, Multi-mode BIDI / 2KM, TX1310nm / RX1550nm, 0 ~ 70°C

SFP100B3-MM-I 100Mbps SFP optical Transceiver, Multi-mode BIDI / 2KM, TX1310nm / RX1550nm, industrial grade, -40 ~ 85°C

SFP100B5-MM 100Mbps SFP optical Transceiver, Multi-mode BIDI / 2KM, TX1550nm / RX1310nm, 0 ~ 70°C
SFP100B5-MM-I 100Mbps SFP optical Transceiver, Multi-mode BIDI / 2KM, TX1550nm / RX1310nm, industrial grade, -40 ~ 85°C
SFP100B3-SS20 100Mbps SFP optical transceiver, single-mode BIDI / 20km, TX1310nm, RX1550nm, 0 ~ 70°C

SFP100B3-SS20-I 100Mbps SFP optical transceiver, single-mode BIDI / 20km, TX1310nm, RX1550nm, industrial grade, -40 ~ 85°C
SFP100B5-SS20 100Mbps SFP optical transceiver, single-mode BIDI / 20km, TX1550nm, RX1310nm, 0 ~ 70°C

SFP100B5-SS20-I 100Mbps SFP optical transceiver, single-mode BIDI / 20km, TX1550nm, RX1310nm, industrial grade, -40 ~ 85°C
SFP100B3-SS40 100Mbps SFP optical transceiver, single-mode BIDI / 40km, TX1310nm, RX1550nm, 0 ~ 70°C

SFP100B3-SS40-I 100Mbps SFP optical transceiver, single-mode BIDI / 40km, TX1310nm, RX1550nm, industrial grade, -40 ~ 85°C
SFP100B5-SS40 100Mbps SFP optical transceiver, single-mode BIDI / 40km, TX1550nm, RX1310nm, 0 ~ 70°C

SFP100B5-SS40-I 100Mbps SFP optical transceiver, single-mode BIDI / 40km, TX1550nm, RX1310nm, industrial grade, -40 ~ 85°C
SFP100B3-SS60 100Mbps SFP optical transceiver, single-mode BIDI / 60km, TX1310nm, RX1550nm, 0 ~ 70°C

SFP100B3-SS60-I 100Mbps SFP optical transceiver, single-mode BIDI / 60km, TX1310nm, RX1550nm, industrial grade, -40 ~ 85°C
SFP100B5-SS60 100Mbps SFP optical transceiver, single-mode BIDI / 60km, TX1550nm, RX1310nm, 0 ~ 70°C

SFP100B5-SS60-I 100Mbps SFP optical transceiver, single-mode BIDI / 60km, TX1550nm, RX1310nm, industrial grade, -40 ~ 85°C

Get Connected Anytime, Anywhere 127
