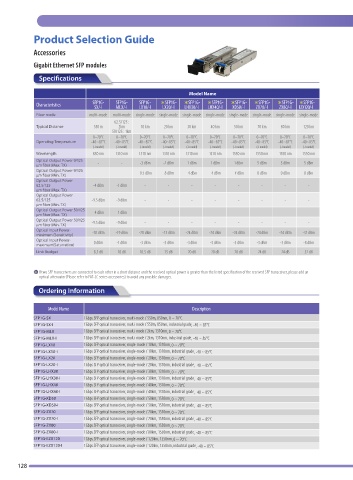

Product Selection Guide

Accessories

Gigabit Ethernet SFP modules

Specifications

Model Name
Characteristics SFP1G- SFP1G- SFP1G- ＊SFP1G- ＊SFP1G- ＊SFP1G- ＊SFP1G- ＊SFP1G- ＊SFP1G- ＊SFP1G-
MLX/-I
LX10/-I
SX/-I
EZX120/-I
LX20/-I
XD50/-I
ZX70/-I
LHX40/-I
LHX30/-I
ZX80/-I
Fiber mode multi-mode multi-mode single-mode single-mode single-mode single-mode single-mode single-mode single-mode single-mode
62.5/125 :
Typical Distance 550 m 2km 10 km 20 km 30 km 40 km 50 km 70 km 80 km 120 km
50/125 : 1km
0~70°C 0~70°C 0~70°C 0~70°C 0~70°C 0~70°C 0~70°C 0~70°C 0~70°C 0~70°C
Operating Temperature -40~85°C -40~85°C -40~85°C -40~85°C -40~85°C -40~85°C -40~85°C -40~85°C -40~85°C -40~85°C
(-I model) (-I model) (-I model) (-I model) (-I model) (-I model) (-I model) (-I model) (-I model) (-I model)
Wavelength 850 nm 1310 nm 1310 nm 1310 nm 1310 nm 1310 nm 1550 nm 1550 nm 1550 nm 1550 nm
Optical Output Power 9/125
μm fiber (Max. TX) - - -3 dBm -2 dBm 1 dBm 1 dBm 1 dBm 5 dBm 5 dBm 5 dBm
Optical Output Power 9/125
μm fiber (Min. TX) - - -9.5 dBm -8 dBm -4 dBm -4 dBm -4 dBm 0 dBm 0 dBm 0 dBm
Optical Output Power
62.5/125 -4 dBm -1 dBm - - - - - - - -
μm fiber (Max. TX)
Optical Output Power
62.5/125 -9.5 dBm -9 dBm - - - - - - - -
μm fiber (Min. TX)
Optical Output Power 50/125 -4 dBm -1 dBm - - - - - - - -
μm fiber (Max. TX)
Optical Output Power 50/125 -9.5 dBm -9 dBm - - - - - - - -
μm fiber (Min. TX)
Optical Input Power-
minimum (Sensitivity) -18 dBm -19 dBm -20 dBm -23 dBm -24 dBm -24 dBm -24 dBm -24 dBm -24 dBm -32 dBm
Optical Input Power-
maximum(Saturration) 0 dBm -1 dBm -3 dBm -3 dBm -3 dBm -3 dBm -3 dBm -3 dBm -3 dBm -8 dBm
Link Budget 8.5 dB 10 dB 10.5 dB 15 dB 20 dB 20 dB 20 dB 24 dB 24 dB 32 dB
＊If two SFP transceivers are connected to each other in a short distance and the received optical power is greater than the listed specification of the received SFP transceiver, please add an
optical attenuator(Please refer to FAT-LC series accessories) to avoid any possible damages.
Ordering Information

Model Name Description
SFP1G-SX 1Gbps SFP optical transceiver, multi-mode / 550m, 850nm, 0 ~ 70°C
SFP1G-SX-I 1Gbps SFP optical transceiver, multi-mode / 550m, 850nm, industrial grade, -40 ~ 85°C
SFP1G-MLX 1Gbps SFP optical transceiver, multi-mode / 2km, 1310nm, 0 ~ 70°C
SFP1G-MLX-I 1Gbps SFP optical transceiver, multi-mode / 2km, 1310nm, industrial grade, -40 ~ 85°C
SFP1G-LX10 1Gbps SFP optical transceiver, single-mode / 10km, 1310nm, 0 ~ 70°C
SFP1G-LX10-I 1Gbps SFP optical transceiver, single-mode / 10km, 1310nm, industrial grade, -40 ~ 85°C
SFP1G-LX20 1Gbps SFP optical transceiver, single-mode / 20km, 1310nm, 0 ~ 70°C
SFP1G-LX20-I 1Gbps SFP optical transceiver, single-mode / 20km, 1310nm, industrial grade, -40 ~ 85°C
SFP1G-LHX30 1Gbps SFP optical transceiver, single-mode / 30km, 1310nm, 0 ~ 70°C
SFP1G-LHX30-I 1Gbps SFP optical transceiver, single-mode / 30km, 1310nm, industrial grade, -40 ~ 85°C
SFP1G-LHX40 1Gbps SFP optical transceiver, single-mode / 40km, 1310nm, 0 ~ 70°C
SFP1G-LHX40-I 1Gbps SFP optical transceiver, single-mode / 40km, 1310nm, industrial grade, -40 ~ 85°C
SFP1G-XD50 1Gbps SFP optical transceiver, single-mode / 50km, 1550nm, 0 ~ 70°C
SFP1G-XD50-I 1Gbps SFP optical transceiver, single-mode / 50km, 1550nm, industrial grade, -40 ~ 85°C
SFP1G-ZX70 1Gbps SFP optical transceiver, single-mode / 70km, 1550nm, 0 ~ 70°C
SFP1G-ZX70-I 1Gbps SFP optical transceiver, single-mode / 70km, 1550nm, industrial grade, -40 ~ 85°C
SFP1G-ZX80 1Gbps SFP optical transceiver, single-mode / 80km, 1550nm, 0 ~ 70°C
SFP1G-ZX80-I 1Gbps SFP optical transceiver, single-mode / 80km, 1550nm, industrial grade, -40 ~ 85°C
SFP1G-EZX120 1Gbps SFP optical transceiver, single-mode / 120km, 1550nm, 0 ~ 70°C
SFP1G-EZX120-I 1Gbps SFP optical transceiver, single-mode / 120km, 1550nm, industrial grade, -40 ~ 85°C
