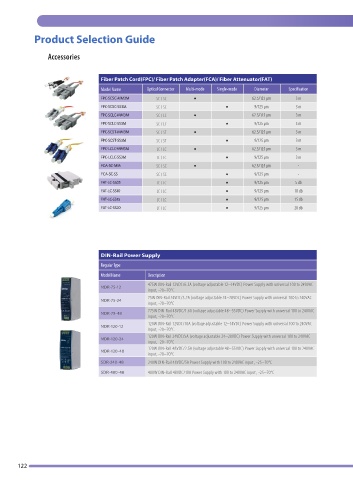

Product Selection Guide

Accessories

Fiber Patch Cord(FPC)/ Fiber Patch Adapter(FCA)/ Fiber Attenuator(FAT)
Model Name Optical Connector Multi-mode Single-mode Diameter Specification
FPC-SCSC-MM3M SC / SC ● 62.5/125 μm 3 m
FPC-SCSC-SS3M SC / SC ● 9/125 μm 3 m
FPC-SCLC-MM3M SC / LC ● 62.5/125 μm 3 m
FPC-SCLC-SS3M SC / LC ● 9/125 μm 3 m
FPC-SCST-MM3M SC / ST ● 62.5/125 μm 3 m
FPC-SCST-SS3M SC / ST ● 9/125 μm 3 m
FPC-LCLC-MM3M LC / LC ● 62.5/125 μm 3 m
FPC-LCLC-SS3M LC / LC ● 9/125 μm 3 m
FCA-SC-MM SC / SC ● 62.5/125 μm -
FCA-SC-SS SC / SC ● 9/125 μm -
FAT-LC-SS05 LC / LC ● 9/125 μm 5 db
FAT-LC-SS10 LC / LC ● 9/125 μm 10 db
FAT-LC-SS15 LC / LC ● 9/125 μm 15 db
FAT-LC-SS20 LC / LC ● 9/125 μm 20 db

DIN-Rail Power Supply
Regular Type
Model Name Description
475W DIN-Rail 12VDC/6.3A (voltage adjustable 12~14VDC) Power Supply with universal 100 to 240VAC
NDR-75-12
input, -20~70°C
75W DIN-Rail 24VDC/3.2A (voltage adjustable 24~28VDC) Power Supply with universal 100 to 240VAC
NDR-75-24
input, -20~70°C
775W DIN-Rail 48VDC/1.6A (voltage adjustable 48~55VDC) Power Supply with universal 100 to 240VAC
NDR-75-48
input, -20~70°C
120W DIN-Rail 12VDC/10A (voltage adjustable 12~14VDC) Power Supply with universal 100 to 240VAC
NDR-120-12
input, -20~70°C
120W DIN-Rail 24VDC/5A (voltage adjustable 24~28VDC) Power Supply with universal 100 to 240VAC
NDR-120-24
input, -20~70°C
120W DIN-Rail 48VDC/2.5A (voltage adjustable 48~55VDC) Power Supply with universal 100 to 240VAC
NDR-120-48
input, -20~70°C
SDR-240-48 240W DIN-Rail 48VDC/5A Power Supply with 100 to 240VAC input , -25~70°C
SDR-480-48 480W DIN-Rail 48VDC/10A Power Supply with 100 to 240VAC input , -25~70°C
