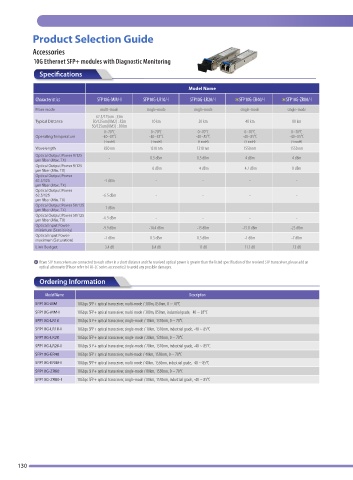

Product Selection Guide

Accessories
10G Ethernet SFP+ modules with Diagnostic Monitoring

Specifications

Model Name
Characteristics SFP10G-MM/-I SFP10G-LR10/-I SFP10G-LR20/-I ＊SFP10G-ER40/-I ＊SFP10G-ZR80/-I
Fiber mode multi-mode single-mode single-mode single-mode single-mode
62.5/125um : 33m
Typical Distance 50/125um(OM2) : 82m 10 km 20 km 40 km 80 km
50/125um(OM3) : 300m
0~70°C 0~70°C 0~70°C 0~70°C 0~70°C
Operating Temperature -40~85°C -40~85°C -40~85°C -40~85°C -40~85°C
(-I model) (-I model) (-I model) (-I model) (-I model)
Wavelength 850 nm 1310 nm 1310 nm 1550 nm 1550 nm
Optical Output Power 9/125 - 0.5 dBm 0.5 dBm 4 dBm 4 dBm
μm fiber (Max. TX)
Optical Output Power 9/125
μm fiber (Min. TX) - -6 dBm -4 dBm -4.7 dBm 0 dBm
Optical Output Power
62.5/125 -1 dBm - - - -
μm fiber (Max. TX)
Optical Output Power
62.5/125 -6.5 dBm - - - -
μm fiber (Min. TX)
Optical Output Power 50/125 -1 dBm - - - -
μm fiber (Max. TX)
Optical Output Power 50/125 -6.5 dBm - - - -
μm fiber (Min. TX)
Optical Input Power-
minimum (Sensitivity) -9.9 dBm -14.4 dBm -15 dBm -15.8 dBm -23 dBm
Optical Input Power-
maximum (Saturation) -1 dBm 0.5 dBm 0.5 dBm -1 dBm -7 dBm
Link Budget 3.4 dB 8.4 dB 11 dB 11.1 dB 23 dB

＊If two SFP transceivers are connected to each other in a short distance and the received optical power is greater than the listed specification of the received SFP transceiver, please add an
optical attenuator(Please refer to FAT-LC series accessories) to avoid any possible damages.
Ordering Information

Model Name Description
SFP10G-MM 10Gbps SFP+ optical transceiver, multi-mode / 300m, 850nm, 0 ~ 70°C
SFP10G-MM-I 10Gbps SFP+ optical transceiver, multi-mode / 300m, 850nm, industrial grade, -40 ~ 85°C
SFP10G-LR10 10Gbps SFP+ optical transceiver, single-mode / 10km, 1310nm, 0 ~ 70°C
SFP10G-LR10-I 10Gbps SFP+ optical transceiver, single-mode / 10km, 1310nm, industrial grade, -40 ~ 85°C
SFP10G-LR20 10Gbps SFP+ optical transceiver, single-mode / 20km, 1310nm, 0 ~ 70°C
SFP10G-LR20-I 10Gbps SFP+ optical transceiver, single-mode / 20km, 1310nm, industrial grade, -40 ~ 85°C
SFP10G-ER40 10Gbps SFP+ optical transceiver, multi-mode / 40km, 1550nm, 0 ~ 70°C
SFP10G-ER40-I 10Gbps SFP+ optical transceiver, multi-mode / 40km, 1550nm, industrial grade, -40 ~ 85°C
SFP10G-ZR80 10Gbps SFP+ optical transceiver, single-mode / 80km, 1550nm, 0 ~ 70°C
SFP10G-ZR80-I 10Gbps SFP+ optical transceiver, single-mode / 80km, 1550nm, industrial grade, -40 ~ 85°C
