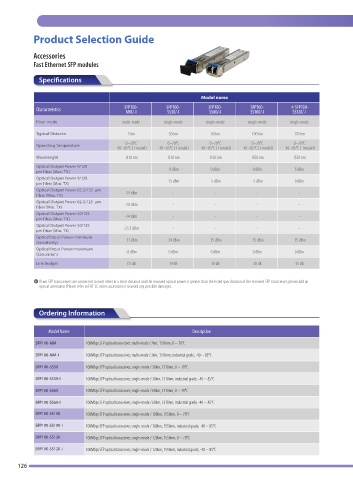

Product Selection Guide

Accessories
Fast Ethernet SFP modules

Specifications

Model name
SFP100-
Characteristics SFP100- SFP100- SFP100- SS100/-I ＊SFP100-
SS120/-I
MM/-I
SS60/-I
SS30/-I
Fiber mode multi-mode single-mode single-mode single-mode single-mode
Typical Distance 2 km 30 km 60 km 100 km 120 km
Operating Temperature 0~70°C 0~70°C 0~70°C 0~70°C 0~70°C
-40~85°C (-I model) -40~85°C (-I model) -40~85°C (-I model) -40~85°C (-I model) -40~85°C (-I model)
Wavelength 1310 nm 1310 nm 1310 nm 1550 nm 1550 nm
Optical Output Power 9/125
μm fiber (Max. TX) - -8 dBm 0 dBm 0 dBm 5 dBm
Optical Output Power 9/125
μm fiber (Min. TX) - -15 dBm -5 dBm -5 dBm 0 dBm
Optical Output Power 62.5/125 μm
fiber (Max. TX) -14 dBm - - - -
Optical Output Power 62.5/125 μm
fiber (Min. TX) -20 dBm - - - -
Optical Output Power 50/125
μm fiber (Max. TX) -14 dBm - - - -
Optical Output Power 50/125
μm fiber (Min. TX) -23.5 dBm - - - -
Optical Input Power-minimum
(Sensitivity) -31 dBm -34 dBm -35 dBm -35 dBm -35 dBm
Optical Input Power-maximum
(Saturation) -8 dBm 0 dBm 0 dBm 0 dBm 0 dBm
Link Budget 7.5 dB 19 dB 30 dB 30 dB 35 dB

＊If two SFP transceivers are connected to each other in a short distance and the received optical power is greater than the listed specification of the received SFP transceiver, please add an
optical attenuator(Please refer to FAT-LC series accessories) to avoid any possible damages.

Ordering Information

Model Name Description

SFP100-MM 100Mbps SFP optical transceiver, multi-mode / 2km, 1310nm, 0 ~ 70°C
SFP100-MM-I 100Mbps SFP optical transceiver, multi-mode / 2km, 1310nm, industrial grade, -40 ~ 85°C

SFP100-SS30 100Mbps SFP optical transceiver, single-mode / 30km, 1310nm, 0 ~ 70°C
SFP100-SS30-I 100Mbps SFP optical transceiver, single-mode / 30km, 1310nm, industrial grade, -40 ~ 85°C

SFP100-SS60 100Mbps SFP optical transceiver, single-mode / 60km, 1310nm, 0 ~ 70°C
SFP100-SS60-I 100Mbps SFP optical transceiver, single-mode / 60km, 1310nm, industrial grade, -40 ~ 85°C
SFP100-SS100 100Mbps SFP optical transceiver, single-mode / 100km, 1550nm, 0 ~ 70°C

SFP100-SS100-I 100Mbps SFP optical transceiver, single-mode / 100km, 1550nm, industrial grade, -40 ~ 85°C
SFP100-SS120 100Mbps SFP optical transceiver, single-mode / 120km, 1550nm, 0 ~ 70°C

SFP100-SS120-I 100Mbps SFP optical transceiver, single-mode / 120km, 1550nm, industrial grade, -40 ~ 85°C
