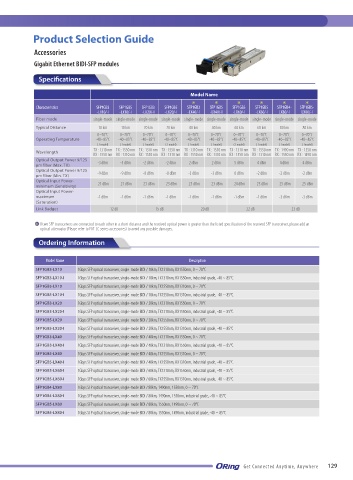

Product Selection Guide

Accessories

Gigabit Ethernet BIDI-SFP modules

Specifications

Model Name
＊ ＊ ＊ ＊ ＊ ＊
Characteristics SFP1GB3 SFP1GB5 SFP1GB3 SFP1GB5 SFP1GB3 SFP1GB5 SFP1GB3 SFP1GB5 SFP1GB4- SFP1GB5-
-LX10/-I -LX10/-I -LX20/-I -LX20/-I -LX40/-I -LX40/-I -LX60/-I -LX60/-I LX80/-I LX80/-I
Fiber mode single-mode single-mode single-mode single-mode single-mode single-mode single-mode single-mode single-mode single-mode
Typical Distance 10 km 10 km 20 km 20 km 40 km 40 km 60 km 60 km 80 km 80 km
0~70°C 0~70°C 0~70°C 0~70°C 0~70°C 0~70°C 0~70°C 0~70°C 0~70°C 0~70°C
Operating Temperature -40~85°C -40~85°C -40~85°C -40~85°C -40~85°C -40~85°C -40~85°C -40~85°C -40~85°C -40~85°C
(-I model) (-I model) (-I model) (-I model) (-I model) (-I model) (-I model) (-I model) (-I model) (-I model)
Wavelength TX : 1310 nm TX : 1550 nm TX : 1310 nm TX : 1550 nm TX : 1310 nm TX : 1550 nm TX : 1310 nm TX : 1550 nm TX : 1490 nm TX : 1550 nm
RX : 1550 nm RX : 1310 nm RX : 1550 nm RX : 1310 nm RX : 1550 nm RX : 1310 nm RX : 1550 nm RX : 1310 nm RX : 1550 nm RX : 1490 nm
Optical Output Power 9/125
μm fiber (Max. TX) -3 dBm -3 dBm -2 dBm -2 dBm 2 dBm 2 dBm 5 dBm 4 dBm 4 dBm 4 dBm
Optical Output Power 9/125
μm fiber (Min. TX) -9 dBm -9 dBm -8 dBm -8 dBm -3 dBm -3 dBm 0 dBm -2 dBm -2 dBm -2 dBm
Optical Input Power-
minimum (Sensitivity) -21 dBm -21 dBm -23 dBm -23 dBm -23 dBm -23 dBm -24 dBm -25 dBm -25 dBm -25 dBm
Optical Input Power-
maximum -1 dBm -1 dBm -1 dBm -1 dBm -1 dBm -1 dBm -1 dBm -1 dBm -3 dBm -3 dBm
(Saturation)
Link Budget 12 dB 15 dB 20 dB 22 dB 23 dB

＊If two SFP transceivers are connected to each other in a short distance and the received optical power is greater than the listed specification of the received SFP transceiver, please add an
optical attenuator(Please refer to FAT-LC series accessories) to avoid any possible damages.
Ordering Information

Model Name Description
SFP1GB3-LX10 1Gbps SFP optical transceiver, single-mode BIDI / 10km, TX1310nm, RX1550nm, 0 ~ 70°C
SFP1GB3-LX10-I 1Gbps SFP optical transceiver, single-mode BIDI / 10km, TX1310nm, RX1550nm, industrial grade, -40 ~ 85°C
SFP1GB5-LX10 1Gbps SFP optical transceiver, single-mode BIDI / 10km, TX1550nm, RX1310nm, 0 ~ 70°C
SFP1GB5-LX10-I 1Gbps SFP optical transceiver, single-mode BIDI / 10km, TX1550nm, RX1310nm, industrial grade, -40 ~ 85°C
SFP1GB3-LX20 1Gbps SFP optical transceiver, single-mode BIDI / 20km, TX1310nm, RX1550nm, 0 ~ 70°C
SFP1GB3-LX20-I 1Gbps SFP optical transceiver, single-mode BIDI / 20km, TX1310nm, RX1550nm, industrial grade, -40 ~ 85°C
SFP1GB5-LX20 1Gbps SFP optical transceiver, single-mode BIDI / 20km, TX1550nm, RX1310nm, 0 ~ 70°C
SFP1GB5-LX20-I 1Gbps SFP optical transceiver, single-mode BIDI / 20km, TX1550nm, RX1310nm, industrial grade, -40 ~ 85°C
SFP1GB3-LX40 1Gbps SFP optical transceiver, single-mode BIDI / 40km, TX1310nm, RX1550nm, 0 ~ 70°C
SFP1GB3-LX40-I 1Gbps SFP optical transceiver, single-mode BIDI / 40km, TX1310nm, RX1550nm, industrial grade, -40 ~ 85°C
SFP1GB5-LX40 1Gbps SFP optical transceiver, single-mode BIDI / 40km, TX1550nm, RX1310nm, 0 ~ 70°C
SFP1GB5-LX40-I 1Gbps SFP optical transceiver, single-mode BIDI / 40km, TX1550nm, RX1310nm, industrial grade, -40 ~ 85°C
SFP1GB3-LX60-I 1Gbps SFP optical transceiver, single-mode BIDI / 60km, TX1310nm, RX1550nm, industrial grade, -40 ~ 85°C
SFP1GB5-LX60-I 1Gbps SFP optical transceiver, single-mode BIDI / 60km, TX1550nm, RX1310nm, industrial grade, -40 ~ 85°C
SFP1GB4-LX80 1Gbps SFP optical transceiver, single-mode BIDI / 80km, 1490nm, 1550nm, 0 ~ 70°C
SFP1GB4-LX80-I 1Gbps SFP optical transceiver, single-mode BIDI / 80km, 1490nm, 1550nm, industrial grade, -40 ~ 85°C
SFP1GB5-LX80 1Gbps SFP optical transceiver, single-mode BIDI / 80km, 1550nm, 1490nm, 0 ~ 70°C
SFP1GB5-LX80-I 1Gbps SFP optical transceiver, single-mode BIDI / 80km, 1550nm, 1490nm, industrial grade, -40 ~ 85°C
