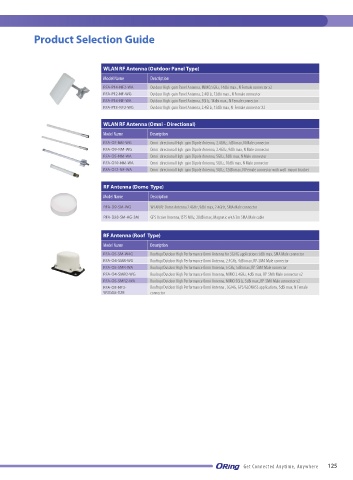

Product Selection Guide

WLAN RF Antenna (Outdoor Panel Type)
Model Name Description
RFA-P14-NF2-WA Outdoor High-gain Panel Antenna, MIMO,5GHz, 14dbi max., N Female connector x2
RFA-P12-NF-WG Outdoor High-gain Panel Antenna, 2.4GHz, 12dbi max., N Female connector
RFA-P14-NF-WA Outdoor High-gain Panel Antenna, 5GHz, 14dbi max., N Female connector
RFA-P13-NF2-WG Outdoor High-gain Panel Antenna, 2.4GHz, 13dBi max, N-Female connector X2

WLAN RF Antenna (Omni - Directional)

Model Name Description
RFA-O7-NM-WG Omni-directional High-gain Dipole Antenna, 2.4GHz, 7dBi max, N Male connector
RFA-O9-NM-WG Omni-directional High-gain Dipole Antenna, 2.4GHz, 9dBi max, N Male connector
RFA-O5-NM-WA Omni-directional High-gain Dipole Antenna, 5GHz, 5dBi max, N Male connector
RFA-O10-NM-WA Omni-directional High-gain Dipole Antenna, 5GHz, 10dBi max, N Male connector
RFA-O12-NF-WA Omni-directional High-gain Dipole Antenna, 5GHz, 12dBi max, N Female connector with wall-mount bracket

RF Antenna (Dome Type)

Model Name Description
RFA-D9-SM-WG WLAN RF Dome Antenna 2.4GHz, 9dbi max, 2.4GHz, SMA Male connector
RFA-D28-SM-AG-3M GPS Active Antenna,1575 MHz, 28dBi max, Magnetic with 3m SMA Male cable

RF Antenna (Roof Type)
Model Name Description
RFA-O5-SM-W4G Rooftop/Outdoor High Performance Omni Antenna for 3G/4G applications 5dBi max, SMA Male connector
RFA-O4-SMR-WG Rooftop/Outdoor High Performance Omni Antenna, 2.4GHz, 4dBi max, RP-SMA Male connector
RFA-O5-SMR-WA Rooftop/Outdoor High Performance Omni Antenna, 5 GHz, 5dBi max, RP-SMA Male connector
RFA-O4-SMR2-WG Rooftop/Outdoor High Performance Omni Antenna, MIMO 2.4GHz, 4dBi max, RP-SMA Male connector x2
RFA-O5-SMR2-WA Rooftop/Outdoor High Performance Omni Antenna, MIMO 5GHz, 5dBi max.,RP-SMA Male connector x2
RFA-O5-NF3- Rooftop/Outdoor High Performance Omni Antenna , 3G/4G, GPS/GLONASS applications, 5dBi max, N Female
W3GGS-028 connector
