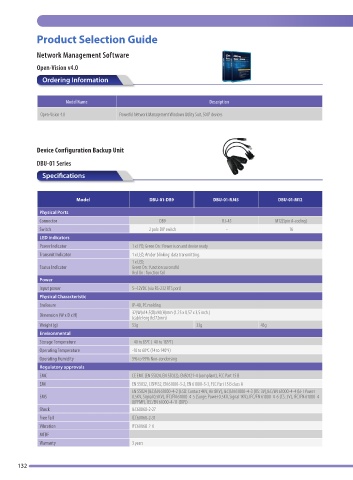

Product Selection Guide

Network Management Software
Open-Vision v4.0

Ordering Information

Model Name Description

Open-Vision 4.0 Powerful Network Management Windows Utility Suit, 50 IP devices

Device Configuration Backup Unit

DBU-01 Series
Specifications

Model DBU-01-DB9 DBU-01-RJ45 DBU-01-M12

Physical Ports
Connector DB9 RJ-45 M12(5pin A-coding)
Switch 2 pole DIP switch - 16
LED indicators
Power Indicator 1 x LED, Green On : Power is on and device ready
Transmit Indicator 1 x LED, Amber blinking: data transmitting.
1 x LED,
Status Indicator Green On : function successful
Red On : function fail
Power
Input power 5~12VDC (via RS-232 RTS port)
Physical Characteristic
Enclosure IP-40, PC molding
32(W)x14.5(D)x90(H)mm (1.25 x 0.57 x 3.5 inch.)
Dimension (W x D x H)
(cable length:172mm)
Weight (g) 53g 33g 43g
Environmental
Storage Temperature -40 to 85 C (-40 to 185 F)
o
o
Operating Temperature -10 to 60 C (14 to 140 F)
o
o
Operating Humidity 5% to 95% Non-condensing
Regulatory approvals
EMC CE EMC (EN 55024, EN 55032), EN50121-4 (compliant), FCC Part 15 B
EMI EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A
EN 55024 (IEC/EN 61000-4-2 (ESD: Contact 4KV, Air 8KV), IEC/EN 61000-4-3 (RS: 3V),IEC/EN 61000-4-4 (EFT Power
EMS 0.5KV, Signal 0.5KV), IEC/EN 61000-4-5 (Surge: Power 0.5KV, Signal 1KV), IEC/EN 61000-4-6 (CS: 3V), IEC/EN 61000-4-
8(PFMF), IEC/EN 61000-4-11 (DIP))
Shock IEC60068-2-27
Free Fall IEC60068-2-31
Vibration IEC60068-2-6
MTBF
Warranty 3 years

132
