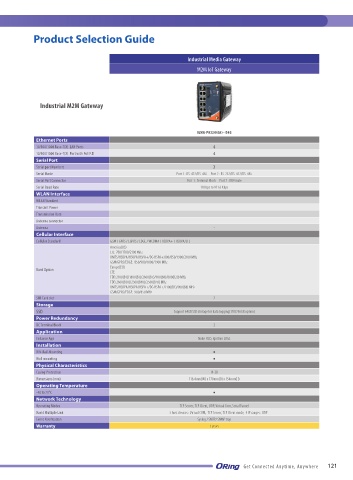

Product Selection Guide

Industrial Media Gateway
M2M IoT Gateway

Industrial M2M Gateway

IGMG-P83244GC+-D4G
Ethernet Ports
10/100/1000 Base-T(X) LAN Ports 4
10/100/1000 Base-T(X) Port with PoE P.D 4
Serial Port
Serial port Numbers 2
Serial Mode Port 1 : RS-422/RS-485 Port 2 : RS-232/RS-422/RS-485
Serial Port Connector Port 1 : Terminal Block Port 2 : DB9 male
Serial Baud Rate 110 bps to 921.6 Kbps
WLAN Interface
WLAN Standard -
Transmit Power -
Transmission Rate -
Antenna connector -
Antenna -
Cellular Interface
Cullular Standard GSM / GPRS / EGPRS / EDGE / WCDMA / HSDPA+ / HSUPA/LTE
America(US)
LTE: 700/1700/2100 MHz
UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+:800/850/1900/2100 MHz
GSM/GPRS/EDGE: 850/900/1800/1900 MHz
Band Option Europe(EU)
LTE:
FDD:2100(B1)/1800(B3)/2600(B7)/900(B8)/800(B20) MHz
TDD:2600(B38)/2300(B40)/2500(B41) MHz
UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+/2100(B1)/900(B8) MHz
GSM/GPRS/EDGE: 900/850 MHz
SIM Card slot 2
Storage
SSD Support 64GB SSD storage for data logging(128/256GB option)
Power Redundancy
DC Terminal Block 2
Application
Enhance App Node-RED, Ignition EDGE
Installation
DIN-Rail Mounting ●
Wall mounting ●
Physical Characteristics
Casing Protection IP-30
Dimensions (mm) 116.4mm(W) x 170mm(D) x 154mm(H)
Operating Temperature
-40 to 70°C ●
Network Technology
Operating Modes TCP Server, TCP Client, UDP, Virtual Com, Serial Tunnel
David Multiple Link 5 host devices : Virtual COM, TCP Server, TCP Client mode; 4 IP ranges : UDP
Event Notification Syslog / SMTP/ SNMP trap
Warranty 5 years

Get Connected Anytime, Anywhere 121
