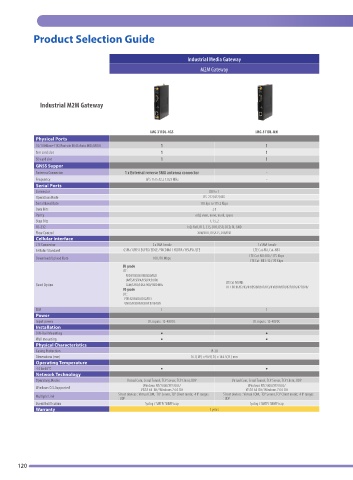

Product Selection Guide

Industrial Media Gateway
M2M Gateway

Industrial M2M Gateway

IMG-311DL-4GS IMG-311DL-MN
Physical Ports
10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX 1 1
Sim card slot 1 1
SD card slot 1 1
GNSS Suppor
Antenna Connector 1 x External reverse SMA antenna connector -
Frequency GPS 1575.42± 1.023 MHz -
Serial Ports
Connector DB9 x 1
Operation Mode RS-232/422/485
Serial Baud Rate 110 bps to 115.2 Kbps
Data Bits 7, 8
Parity odd, even, none, mark, space
Stop Bits 1, 1.5, 2
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
Flow Control XON/XOFF, RTS/CTS, DTR/DSR
Cellular Interface
LTE Connector 2 x SMA Female 1 x SMA Female
Cellular Standard GSM / GPRS/ EGPRS/ EDGE / WCDMA / HSDPA / HSUPA /LTE LTE Cat-M1, Cat-NB1
LTE Cat-M1:300 / 375 Kbps
Download/Upload Rate 100 /50 Mbps
LTE Cat-NB1: 32 / 70 Kbps
EU grade
LTE:
FDD:B1/B3/B7/B8/B20/B28
UMTS/HSDPA/HSUPA:B1/B8
Band Option GSM/GPRS/EDGE:900/1800 MHz LTE Cat-M1/NB :
LTE FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/
US grade
LTE:
FDD:B2/B4/B5/B12/B13
UMTS/HSDPA/HSUPA:B2/B4/B5
SIM 1 1
Power
Input power DC inputs. 12-48VDC DC inputs. 12-48VDC
Installation
DIN-Rail Mounting ● ●
Wall mounting ● ●
Physical Characteristics
Casing Protection IP-30
Dimensions (mm) 26.1( W ) x 94.9( D ) x 144.3( H ) mm
Operating Temperature
-10 to 60°C ● ●
Network Technology
Operating Modes Virtual Com, Serial Tunnel, TCP Server, TCP Client, UDP Virtual Com, Serial Tunnel, TCP Server, TCP Client, UDP
Windows O.S.Supported Windows NT/2000/XP/2003/ Windows NT/2000/XP/2003/
VISTA 64-Bit/ Windows 7 64-Bit VISTA 64-Bit/ Windows 7 64-Bit
Multiple Link 5 host devices : Virtual COM, TCP Server, TCP Client mode; 4 IP ranges 5 host devices : Virtual COM, TCP Server, TCP Client mode; 4 IP ranges
: UDP
: UDP
Event Notification Syslog / SMTP/ SNMP trap Syslog / SMTP/ SNMP trap
Warranty 5 years
