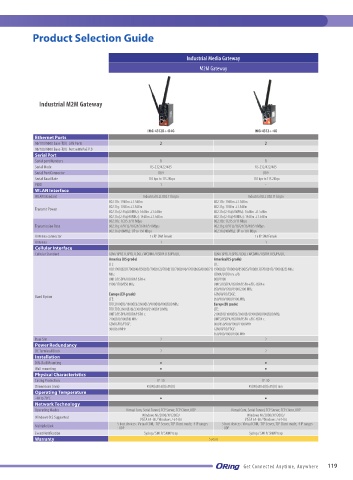

Product Selection Guide

Industrial Media Gateway
M2M Gateway

Industrial M2M Gateway

IMG-4312D+-D4G IMG-4312+-4G
Ethernet Ports
10/100/1000 Base-T(X) LAN Ports 2 2
10/100/1000 Base-T(X) Port with PoE P.D - -
Serial Port
Serial port Numbers 1 1
Serial Mode RS-232/422/485 RS-232/422/485
Serial Port Connector DB9 DB9
Serial Baud Rate 110 bps to 115.2Kbps 110 bps to 115.2Kbps
PIDO 1 -
WLAN Interface
WLAN Standard Industrial IEEE 802.11 b/g/n Industrial IEEE 802.11 b/g/n
802.11b: 19dBm ±1.5dBm 802.11b: 19dBm ±1.5dBm
Transmit Power 802.11g: 17dBm ±1.5dBm 802.11g: 17dBm ±1.5dBm
802.11n(2.4G@20MHz): 16dBm ±1.5dBm 802.11n(2.4G@20MHz): 16dBm ±1.5dBm
802.11n(2.4G@40MHz): 14dBm ±1.5dBm 802.11n(2.4G@40MHz): 14dBm ±1.5dBm
802.11b: 1/2/5.5/11 Mbps 802.11b: 1/2/5.5/11 Mbps
Transmission Rate 802.11g: 6/9/12/18/24/36/48/54 Mbps 802.11g: 6/9/12/18/24/36/48/54 Mbps
802.11n(40MHz): UP to 150 Mbps 802.11n(40MHz): UP to 150 Mbps
Antenna connector 1 x RP-SMA Female 1 x RP-SMA Female
Antenna 1 1
Cellular Interface
Cullular Standard GSM / GPRS / EGPRS / EDGE / WCDMA / HSDPA / HSUPA/LTE GSM / GPRS / EGPRS / EDGE / WCDMA / HSDPA / HSUPA/LTE
America (US grade) America(US grade)
LTE: LTE:
FDD:1900(B2)/1700(B4)/850(B5)/700(B12)/700(B13)/700(B14)/1700(B66)/600(B71) 1900(B2)/1700(B4)/850(B5)/700(B13)/700(B17)/1900(B25) MHz
MHz CDMA/EVDO rev. a/b:
UMTS/HSDPA/HSUPA/HSPA+: 800/1900
1900/1700/850 MHz UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+:
850/900/1700/1900/2100 MHz
Europe (EU grade) GSM/GPRS/EDGE:
Band Option
LTE: 850/900/1800/1900 MHz
FDD:2100(B1)/1800(B3)/2600(B7)/900(B8)/800(B20) MHz Europe(EU grade)
TDD:TDD:2600(B38)/2300(B40)/2500(B41) MHz LTE:
UMTS/HSDPA/HSUPA/HSPA+: 2100(B1)/1800(B3)/2600(B7)/900(B8)/800(B20) MHz
2100(B1)/900(B8) MHz UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+:
GSM/GPRS/EDGE: 800/850/900/1900/2100 MHz
900/850 MHz GSM/GPRS/EDGE:
850/900/1800/1900 MHz
Dual Sim 2 2
Power Redundancy
DC Terminal Block 2 2
Installation
DIN-Rail Mounting ● ●
Wall mounting ● ●
Physical Characteristics
Casing Protection IP-30 IP-30
Dimensions (mm) 45(W)x80.6(D)x95(H) 45(W)x80.6(D)x95(H) mm
Operating Temperature
-40 to 70°C ● ●
Network Technology
Operating Modes Virtual Com, Serial Tunnel, TCP Server, TCP Client, UDP Virtual Com, Serial Tunnel, TCP Server, TCP Client, UDP
Windows O.S.Supported Windows NT/2000/XP/2003/ Windows NT/2000/XP/2003/
VISTA 64-Bit/ Windows 7 64-Bit VISTA 64-Bit/ Windows 7 64-Bit
Multiple Link 5 host devices : Virtual COM, TCP Server, TCP Client mode; 4 IP ranges 5 host devices : Virtual COM, TCP Server, TCP Client mode; 4 IP ranges
: UDP
: UDP
Event Notification Syslog / SMTP/ SNMP trap Syslog / SMTP/ SNMP trap
Warranty 5 years
