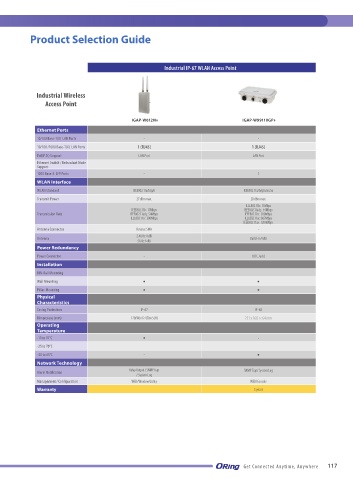

Product Selection Guide

Industrial IP-67 WLAN Access Point -

Industrial Wireless
Access Point

IGAP-W612H+ IGAP-W99110GP+
Ethernet Ports
10/100 Base-T(X) LAN Ports - -
10/100 /1000 Base-T(X) LAN Ports 1 (RJ45) 1 (RJ45)
PoE(P.D.) Support LAN Port LAN Port
Ethernet Switch / Redundant Mode - -
Support
1000 Base-X SFP Ports - 1
WLAN Interface
WLAN Standard IEEE802.11a/b/g/n IEEE802.11a/b/g/n/ac/ax
Transmit Power 27 dBm max. 28 dBm max.
IEEE802.11b : 11Mbps
IEEE802.11b : 11Mbps IEEE802.11a/g : 54Mbps
Transmission Rate IEEE802.11a/g : 54Mbps IEEE802.11n : 300Mbps
IEEE802.11n : 300Mbps IEEE802.11ac :867Mbps
IEEE802.11ax : 1200Mbps
Antenna Connector Reverse SMA -
2.4GHz :4 dBi
Antenna Build-in 9dBi
5GHz :6 dBi
Power Redundancy
Power Connector - 1(DC Jack)
Installation
DIN-Rail Mounting - -
Wall Mounting ● ●
Pillar-Mounting ● ●
Physical
Characteristics
Casing Protection IP-67 IP-68
Dimensions (mm) 220(W)x127(D)x75(H) 251 x 168 × 64 mm
Operating
Temperature
-10 to 70°C ● -
-25 to 70°C - -
-40 to 65°C - ●
Network Technology
Alarm Notification Relay Output / SNMP Trap SNMP Trap/ System Log
/ System Log
Management / Configuration WEB/Window Utility WEB/Console
Warranty 3 years
