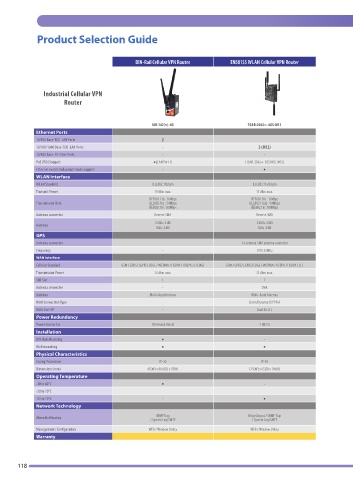

Product Selection Guide

DIN-Rail Cellular VPN Router EN50155 WLAN Cellular VPN Router

Industrial Cellular VPN
Router

IAR-142(+)-4G TGAR-2062+-4GS-M12
Ethernet Ports
10/100 Base-T(X) LAN Ports 2 -
10/100/1000 Base-T(X) LAN Ports - 2 (M12)
10/100 Base-FX Fiber Ports - -
PoE (P.D.)Support ●(LAN Port-1) (TGAR-2062+-3GS/4GS-M12)
Ethernet switch/redundant mode support - ●
WLAN Interface
WLAN Standard IEEE802.11b/g/n IEEE802.11a/b/g/n
Transmit Power 19 dBm max. 17 dBm max.
IEEE802.11b : 11Mbps IEEE802.11b : 11Mbps
Transmission Rate IEEE802.11g : 54Mbps IEEE802.11a/g : 54Mbps
IEEE802.11n : 150Mbps IEEE802.11n : 300Mbps
Antenna connector Reverse SMA Reverse SMA
Antenna 2.4GHz :2 dBi 2.4GHz :2 dBi
5GHz :2 dBi 5GHz :3 dBi
GPS
Antenna connector - 1 x External SMA antenna connector
Frequency - 1575.42MHz
WAN Interface
Cellular Standard GSM / GPRS/ EGPRS/ EDGE / WCDMA / HSDPA / HSUPA / LTE(4G) GSM / GPRS/ EGPRS/ EDGE / WCDMA / HSDPA / HSUPA / LTE
Transmission Power 33 dbm max. 33 dbm max.
SIM Slot 1 2
Antenna connector - SMA
Antenna Multi-Band Antenna Multi-Band Antenna
WAN Connection Type - Static/Dynamic IP,PPPoE
WAN Dial-UP - Dual 4G LTE
Power Redundancy
Power Connector 1(Terminal Block) 2 (M23)
Installation
DIN-Rail Mounting ● -
Wall mounting ● ●
Physical Characteristics
Casing Protection IP-30 IP-40
Dimensions (mm) 45(W) x 80.6(D) x 95(H) 125(W) x 65(D) x 196(H)
Operating Temperature
-10 to 60°C ● -
-20 to 70°C - -
-25 to 70°C - ●
Network Technology
SNMP Trap
Alarm Notification / System Log/SMTP Relay Output / SNMP Trap
/ System Log/SMTP
Management / Configuration WEB / Window Utility WEB / Window Utility
Warranty

118
