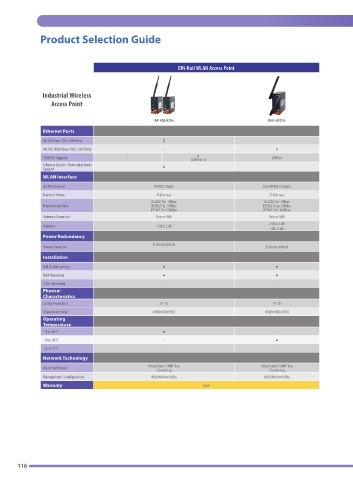

Product Selection Guide
DIN-Rail WLAN Access Point
Industrial Wireless
Access Point
IAP-420/420+ IGAP-610H+
Ethernet Ports
10/100 Base-T(X) LAN Ports 2 -
10/100 /1000 Base-T(X) LAN Ports - 1
●
PoE(P.D.) Support - (LAN Port-1) LAN Port
Ethernet Switch / Redundant Mode ● -
Support
WLAN Interface
WLAN Standard IEEE802.11b/g/n Dual IEEE802.11a/b/g/n
Transmit Power 19 dBm max. 27 dBm max.
IEEE802.11b : 11Mbps IEEE802.11b : 11Mbps
Transmission Rate IEEE802.11g : 54Mbps IEEE802.11a/g : 54Mbps
IEEE802.11n :150Mbps IEEE802.11n : 300Mbps
Antenna Connector Reverse SMA Reverse SMA
2.4GHz :2 dBi
Antenna 2.4GHz :2 dBi
5GHz :2 dBi
Power Redundancy
2(Terminal Block)
Power Connector 2(Terminal Block)
Installation
DIN-Rail Mounting ● ●
Wall Mounting ● ●
Pillar-Mounting - -
Physical
Characteristics
Casing Protection IP-30 IP-30
Dimensions (mm) 41(W)x81(D)x95(H) 45(W)x95(D)x115(H)
Operating
Temperature
-10 to 60°C ● -
-10 to 70°C - ●
-25 to 70°C - -
Network Technology
Alarm Notification Relay Output / SNMP Trap Relay Output / SNMP Trap
/ System Log / System Log
Management / Configuration WEB/Window Utility WEB/Window Utility
Warranty 5 years
