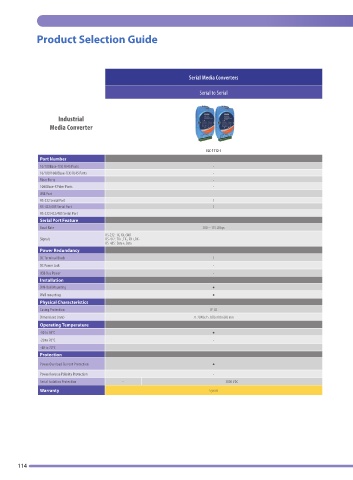

Product Selection Guide
Serial Media Converters
Serial to Serial
Industrial
Media Converter
ISC-1112-I
Port Number
10/100Base-T(X) RJ45 Ports -
10/100/1000Base-T(X) RJ45 Ports -
Fiber Ports -
1000Base-X Fiber Ports -
USB Port -
RS-232 Serial Port 1
RS-422/485 Serial Port 1
RS-232/422/485 Serial Port -
Serial Port Feature
Baud Rate 300 ~ 115.2Kbps
RS-232 : TX, RX, GND
Signals RS-422 : TX+, TX-, RX+,RX-
RS-485 : Data+, Data-
Power Redundancy
DC Terminal Block 1
DC Power Jack -
USB Bus Power -
Installation
DIN-Rail Mounting ●
Wall mounting ●
Physical Characteristics
Casing Protection IP-30
Dimensions (mm) 71.2(W)x25.3(D)x100.6(H) mm
Operating Temperature
-10 to 70°C ●
-20 to 70°C -
-40 to 70°C -
Protection
Power Overload Current Protection ●
Power Reverse Polarity Protection -
Serial Isolation Protection - 3000 VDC
Warranty 5 years
