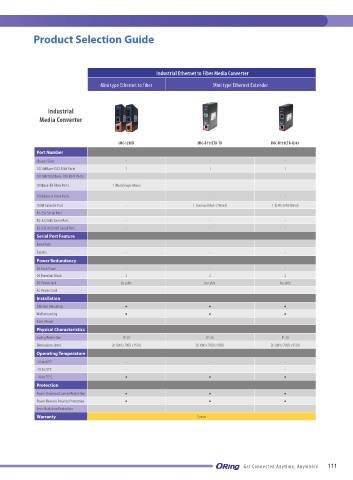

Product Selection Guide
Industrial Ethernet to Fiber Media Converter
Mini type Ethernet to fiber Mini type Ethernet Extender
Industrial
Media Converter
IMC-121FB IMC-B111ETB-TB IMC-B111ETB-RJ45
Port Number
Chassis Slots - - -
10/100Base-T(X) RJ45 Ports 2 1 1
10/100/1000Base-T(X) RJ45 Ports - - -
100Base-FX Fiber Ports 1 (Multi/Single-Mode) - -
1000Base-X Fiber Ports - - -
100M Extende Port - 1 (Terminal Block -2 Wired) 1 (RJ45-2/4/8 Wired)
RS-232 Serial Port - - -
RS-422/485 Serial Port - - -
RS-232/422/485 Serial Port - - -
Serial Port Feature
Baud Rate - - -
Signals - - -
Power Redundancy
DC Back Plane - - -
DC Terminal Block 2 2 2
DC Power Jack by cable by cable by cable
AC Power Cord - - -
Installation
DIN-Rail Mounting ● ● ●
Wall mounting ● ● ●
Rack-Mount - - -
Physical Characteristics
Casing Protection IP-30 IP-30 IP-30
Dimensions (mm) 26.1(W) x 70(D) x 95(H) 26.1(W) x 70(D) x 95(H) 26.1(W) x 70(D) x 95(H)
Operating Temperature
-10 to 60°C - - -
-10 to 70°C - - -
-40 to 75°C ● ● ●
Protection
Power Overload Current Protection ● ● ●
Power Reverse Polarity Protection ● ● ●
Serial Isolation Protection - - -
Warranty 5 years
