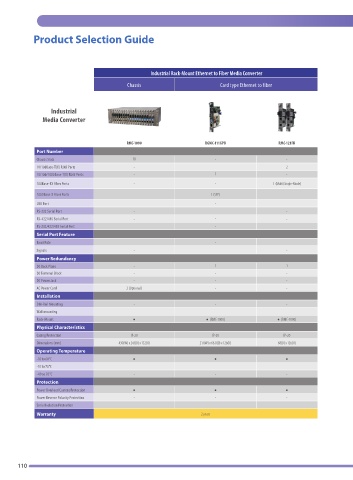

Product Selection Guide
Industrial Rack-Mount Ethernet to Fiber Media Converter
Chassis Card type Ethernet to fiber
Industrial
Media Converter
RMC-1000 RGMC-111GPB RMC-121FB
Port Number
Chassis Slots 18 - -
10/100Base-T(X) RJ45 Ports - - 2
10/100/1000Base-T(X) RJ45 Ports - 1 -
100Base-FX Fiber Ports - - 1 (Multi/Single-Mode)
1000Base-X Fiber Ports - 1 (SFP) -
USB Port - - -
RS-232 Serial Port - - -
RS-422/485 Serial Port - - -
RS-232/422/485 Serial Port - - -
Serial Port Feature
Baud Rate - - -
Signals - - -
Power Redundancy
DC Back Plane - 1 1
DC Terminal Block - - -
DC Power Jack - - -
AC Power Cord 2 (Optional) - -
Installation
DIN-Rail Mounting - - -
Wall mounting - - -
Rack-Mount ● ● (RMC-1000) ● (RMC-1000)
Physical Characteristics
Casing Protection IP-20 IP-20 IP-20
Dimensions (mm) 430(W) x 243(D) x 132(H) 21.8W) x 66.8(D) x 126(H) 68(D) x 126(H)
Operating Temperature
-10 to 60°C ● ● ●
-10 to 70°C - - -
-40 to 70°C - - -
Protection
Power Overload Current Protection ● ● ●
Power Reverse Polarity Protection - - -
Serial Isolation Protection - - -
Warranty 2 years
110
