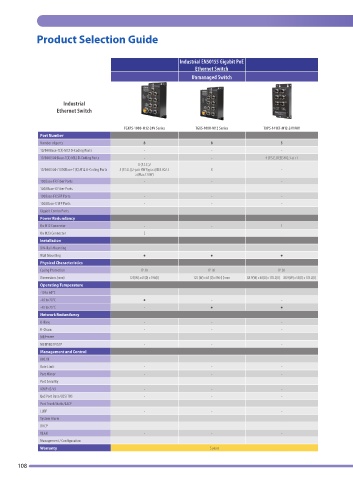

Product Selection Guide

Industrial EN50155 Gigabit PoE
Ethernet Switch
Unmanaged Switch

Industrial
Ethernet Switch

TGXPS-1080-M12-24V Series TGXS-1080-M12 Series TXPS-141XT-M12-24V/MV
Port Number
Number of ports 8 8 5
10/100Base-T(X) M12 D-Coding Ports - - -
10/100/500 Base-T(X) M12 D-Coding Ports - - 4 (P.S.E.) IEEE 802.3 at+1
8 (P.S.E.)/
10/100/500 /1000Base-T(X) M12 A-Coding Ports 8 (P.S.E.)(2-pair HW Bypass)IEEE 802.3 8 -
at(Max.120W)
100Base-FX Fiber Ports - - -
1000Base-X Fiber Ports - - -
100Base-FX SFP Ports - - -
1000Base-X SFP Ports - - -
Gigabit Combo Ports - -
Power Redundancy
On M12 Connector - - 1
On M23 Connector 2 - -
Installation
DIN-Rail Mounting - - -
Wall Mounting ● ● ●
Physical Characteristics
Casing Protection IP-30 IP-30 IP-30
Dimensions (mm) 125(W) x 65(D) x 196(H) 125 (W) x 65 (D) x196 (H) mm 88.9(W) x 40(D) x 178.2(H) 88.9(W) x 55(D) x 178.2(H)
Operating Temperature
-10 to 60°C - - -
-40 to 70°C ● - -
-40 to 75°C - ● ●
Network Redundancy
O-Ring - - -
O-Chain - - -
MRP *NOTE - - -
MSTP/RSTP/STP - - -
Management and Control
802.1X - - -
Rate Limit - - -
Port Mirror - - -
Port Security - - -
IGMP v2/v3 - - -
QoS Port Base/COS/TOS - - -
Port Trunk Static/LACP - - -
LLDP - - -
System Alarm - - -
DHCP - - -
VLAN - - -
Management / Configuration - - -
Warranty 5 years
