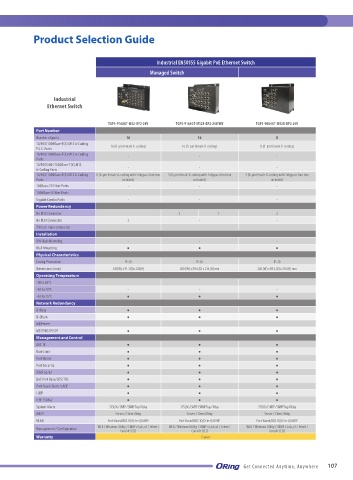

Product Selection Guide

Industrial EN50155 Gigabit PoE Ethernet Switch

Managed Switch

Industrial
Ethernet Switch

TGPS-9168GT-M12-BP2-24V TGPS-9164GT-M12X-BP2-24V/MV TGPS-9084GT-M12X-BP2-24V
Port Number
Number of ports 16 16 8
10/100/1000Base-T(X) M12 A-Coding 16 (8-pin female A-coding) 16 (8-pin female X-coding) 8 (8-pin female X-coding)
P.S.E. Ports
10/100/1000Base-T(X) M12 A-Coding - - -
Ports
10/100/500 /1000Base-T(X) M12 - - -
A-Coding Ports
10/100/1000Base-T(X) M12 X-Coding 8 (8-pin female A-coding with 2xbypass function 4 (8-pin female X-coding with 2xbypass function 4 (8-pin female X-coding with 2xbypass function
Ports included) included) included)
100Base-FX Fiber Ports - - -
1000Base-X Fiber Ports - - -
Gigabit Combo Ports - - -
Power Redundancy
On M12 Connector - 2 1 2
On M23 Connector 2 - -
7/8 inch male connector - - -
Installation
DIN-Rail Mounting - - -
Wall Mounting ● ● ●
Physical Characteristics
Casing Protection IP-30 IP-30 IP-30
Dimensions (mm) 320(W) x 91.3(D)x 228(H) 260 (W) x 89.6 (D) x 216 (H) mm 260 (W) x 89.6 (D) x 216 (H) mm
Operating Temperature
-10 to 60°C - - -
-40 to 70°C - - -
-40 to 75°C ● ● ●
Network Redundancy
O-Ring ● ● ●
O-Chain ● ● ●
MRP *NOTE - - -
MSTP/RSTP/STP ● ● ●
Management and Control
802.1X ● ● ●
Rate Limit ● ● ●
Port Mirror ● ● ●
Port Security ● ● ●
IGMP v2/v3 ● ● ●
QoS Port Base/COS/TOS ● ● ●
Port Trunk Static/LACP ● ● ●
LLDP ● ● ●
IEEE 1588v2 ● ● ●
System Alarm SYSLOG / SMTP / SNMP Trap / Relay SYSLOG / SMTP / SNMP Trap / Relay SYSLOG / SMTP / SNMP Trap / Relay
DHCP Server / Client / Relay Server / Client / Relay Server / Client / Relay
VLAN Port-Based/802.1Q/Q-in-Q/GVRP Port-Based/802.1Q/Q-in-Q/GVRP Port-Based/802.1Q/Q-in-Q/GVRP
Management / Configuration WEB / Windows Utility / SNMP v1,v2c,v3 / Telnet / WEB / Windows Utility / SNMP v1,v2c,v3 / Telnet / WEB / Windows Utility / SNMP v1,v2c,v3 / Telnet /
Console (CLI)
Console (CLI)
Console (CLI)
Warranty 5 years
