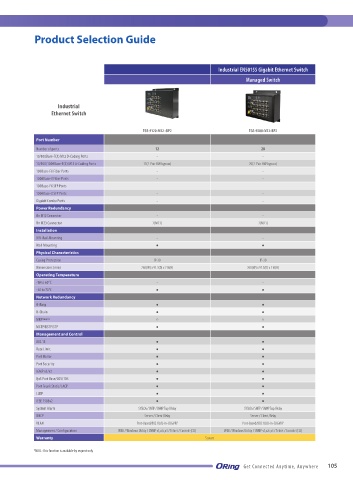

Product Selection Guide

Industrial EN50155 Gigabit Ethernet Switch
Managed Switch

Industrial
Ethernet Switch

TGS-9120-M12 -BP2 TGS-9200-M12-BP2
Port Number
Number of ports 12 20
10/100Base-T(X) M12 D-Coding Ports - -
10/100/1000Base-T(X) M12 A-Coding Ports 12(2-Pair HW bypass) 20(2-Pair HW bypass)
100Base-FX Fiber Ports - -
1000Base-X Fiber Ports - -
100Base-FX SFP Ports - -
1000Base-X SFP Ports - -
Gigabit Combo Ports - -
Power Redundancy
On M12 Connector - -
On M23 Connector 2(M23) 2(M23)
Installation
DIN-Rail Mounting - -
Wall Mounting ● ●
Physical Characteristics
Casing Protection IP-30 IP-30
Dimensions (mm) 260(W) x 91.3(D) x 216(H) 260(W) x 91.3(D) x 216(H)
Operating Temperature
-10 to 60°C - -
-40 to 70°C ● ●
Network Redundancy
O-Ring ● ●
O-Chain ● ●
MRP *NOTE ○ ○
MSTP/RSTP/STP ● ●
Management and Control
802.1X ● ●
Rate Limit ● ●
Port Mirror ● ●
Port Security ● ●
IGMP v2/v3 ● ●
QoS Port Base/COS/TOS ● ●
Port Trunk Static/LACP ● ●
LLDP ● ●
IEEE 1588v2 ● ●
System Alarm SYSLOG / SMTP / SNMP Trap / Relay SYSLOG / SMTP / SNMP Trap / Relay
DHCP Server / Client / Relay Server / Client / Relay
VLAN Port-Based/802.1Q/Q-in-Q/GVRP Port-Based/802.1Q/Q-in-Q/GVRP
Management / Configuration WEB / Windows Utility / SNMP v1,v2c,v3 / Telnet / Console (CLI) WEB / Windows Utility / SNMP v1,v2c,v3 / Telnet / Console (CLI)
Warranty 5 years
*NOTE: This function is available by request only
