Page 102 - 2023-ORing_Guidebook-ok(電子書轉檔用)
P. 102

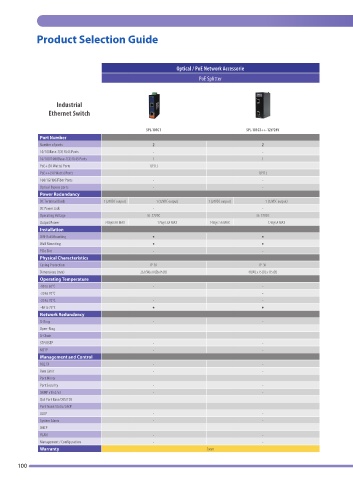

Product Selection Guide
Optical / PoE Network Accessorie
PoE Splitter
Industrial
Ethernet Switch
SPL-101GT SPL-101GT++-12V/24V
Port Number
Number of ports 2 2
10/100Base-T(X) RJ45 Ports - -
10/100/1000Base-T(X) RJ45 Ports 1 1
PoE+(30 Watts) Ports 1(P.D.) -
PoE++(90 Watts) Ports - 1(P.D.)
100/1G/10G Fiber Ports - -
Optical Bypass ports - -
Power Redundancy
DC Terminal Block 1 (24VDC output) 1 (12VDC output) 1 (24VDC output) 1 (12VDC output)
DC Power Jack - -
Operating Voltage 36-57VDC 36-57VDC
Output Power 24V@0.9A MAX 12V@1.8A MAX 24V@2.5A MAX 12V@5A MAX
Installation
DIN-Rail Mounting ● ●
Wall Mounting ● ●
PCIe Slot - -
Physical Characteristics
Casing Protection IP-30 IP-30
Dimensions (mm) 26.1(W)x70(D)x95(H) 41(W) x 75 (D) x 115 (H)
Operating Temperature
-10 to 60°C - -
-20 to 70°C -
-25 to 70°C - -
-40 to 75°C ● ●
Network Redundancy
O-Ring - -
Open-Ring - -
O-Chain - -
STP/RSTP - -
MSTP - -
Management and Control
802.1X - -
Rate Limit - -
Port Mirror - -
Port Security - -
SNMP v1/v2/v3 - -
QoS Port Base/COS/TOS - -
Port Trunk Static/LACP - -
LLDP - -
System Alarm - -
DHCP - -
VLAN - -
Management / Configuration - -
Warranty 5 years
100
