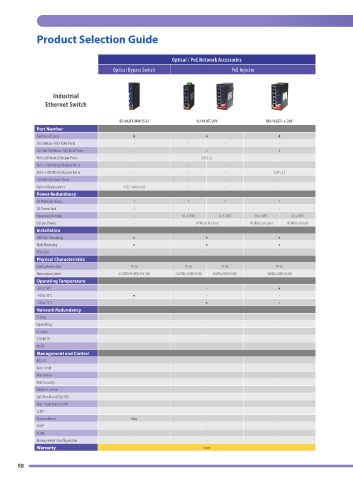

Product Selection Guide
Optical / PoE Network Accessories
Optical Bypass Switch PoE Injector
Industrial
Ethernet Switch
IBS-102FX-MM/SS-LC INJ-102GT/24V INJ-102GT++/24V
Port Number
Number of ports 4 4 4
10/100Base-T(X) RJ45 Ports - - - -
10/100/1000Base-T(X) RJ45 Ports - 2 2
PoE+(30 Watts) Output Ports - 2 (P.S.E.) -
PoE++(60 Watts) Output Ports - - - -
PoE++(90 Watts) Output Ports - - - 2 (P.S.E.)
100/1G/10G Fiber Ports - - - -
Optical Bypass ports 4 (LC connector) - - -
Power Redundancy
DC Terminal Block 1 1 1 1
DC Power Jack 1 - - -
Operating Voltage - 50-57VDC 12-57VDC 50-57VDC 12-57VDC
Output Power - 30 Watts Per Port 90 Watts per port 90 Watts in total
Installation
DIN-Rail Mounting ● ● ●
Wall Mounting ● ● ●
PCIe Slot - - -
Physical Characteristics
Casing Protection IP-30 IP-30 IP-30 IP-30
Dimensions (mm) 26.1(W)x94.9(D)x144.3(H) 26.1(W)x70(D)x95(H) 40(W)x70(D)x95(H) 40(W)x70(D)x95(H)
Operating Temperature
-20 to 70°C - ●
-40 to 70°C ● - -
-40 to 75°C - ● -
Network Redundancy
O-Ring - - -
Open-Ring - - -
O-Chain - - -
STP/RSTP - - -
MSTP - - -
Management and Control
802.1X - - -
Rate Limit - - -
Port Mirror - - -
Port Security - - -
SNMP v1/v2/v3 - - -
QoS Port Base/COS/TOS - - -
Port Trunk Static/LACP - - -
LLDP - - -
System Alarm Relay - -
DHCP - - -
VLAN - - -
Management / Configuration - - -
Warranty 5 years
98
