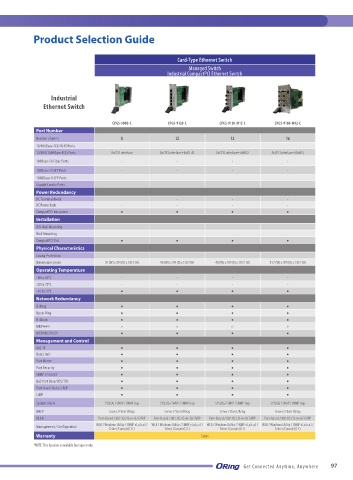

Product Selection Guide

Card-Type Ethernet Switch
Managed Switch
Industrial CompactPCI Ethernet Switch

Industrial
Ethernet Switch

CPGS-9080-C CPGS-9120-C CPGS-9120-M12-C CPGS-9160-M12-C
Port Number
Number of ports 8 12 12 16
10/100Base-T(X) RJ45 Ports - - - -
10/100/1000Base-T(X) Ports 8xCPCI interface 8xCPCI interface+4xRJ-45 8xCPCI interface+4xM12 8xCPCI interface+8xM12
100Base-FX Fiber Ports - - - -
100Base-FX SFP Ports - - - -
1000Base-X SFP Ports - - - -
Gigabit Combo Ports - - - -
Power Redundancy
DC Terminal Block - - -
DC Power Jack - - - -
CompactPCI bus power ● ● ● ●
Installation
DIN-Rail Mounting - - - -
Wall Mounting - - - -
CompactPCI Slot ● ● ● ●
Physical Characteristics
Casing Protection - - - -
Dimensions (mm) 20 (W) x 209 (D) x 130.7 (H) 40 (W) x 209 (D) x 130.7 (H) 40 (W) x 209 (D) x 130.7 (H) 81.7 (W) x 209 (D) x 130.7 (H)
Operating Temperature
-10 to 60°C - - - -
-20 to 70°C - - - -
-40 to 70°C ● ● ● ●
Network Redundancy
O-Ring ● ● ● ●
Open-Ring ● ● ● ●
O-Chain ● ● ● ●
MRP *NOTE ○ ○ ○ ○
MSTP/RSTP/STP ● ● ● ●
Management and Control
802.1X ● ● ● ●
Rate Limit ● ● ● ●
Port Mirror ● ● ● ●
Port Security ● ● ● ●
SNMP v1/v2/v3 ● ● ● ●
QoS Port Base/COS/TOS ● ● ● ●
Port Trunk Static/LACP ● ● ● ●
LLDP ● ● ● ●
System Alarm SYSLOG / SMTP / SNMP Trap SYSLOG / SMTP / SNMP Trap SYSLOG / SMTP / SNMP Trap SYSLOG / SMTP / SNMP Trap
DHCP Server / Client /Relay Server / Client /Relay Server / Client /Relay Server / Client /Relay
VLAN Port-Based / 802.1Q / Q-in-Q/ GVRP Port-Based / 802.1Q / Q-in-Q/ GVRP Port-Based / 802.1Q / Q-in-Q/ GVRP Port-Based / 802.1Q / Q-in-Q/ GVRP
Management / Configuration WEB / Windows Utility / SNMP v1,v2c,v3 / WEB / Windows Utility / SNMP v1,v2c,v3 / WEB / Windows Utility / SNMP v1,v2c,v3 / WEB / Windows Utility / SNMP v1,v2c,v3 /
Telnet /Console(CLI ) Telnet /Console(CLI ) Telnet /Console(CLI ) Telnet /Console(CLI )
Warranty 5 years
*NOTE: This function is available by request only
