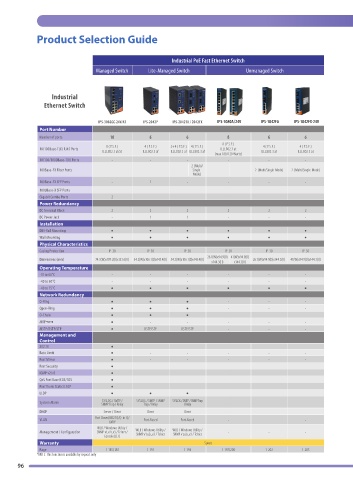

Product Selection Guide

Industrial PoE Fast Ethernet Switch
Managed Switch Lite-Managed Switch Unmanaged Switch

Industrial
Ethernet Switch

IPS-3082GC-24V/AT IPS-2042P IPS-2042TX / 2042FX IPS-1080A/24V IPS-1042FA IPS-1042FX-24V
Port Number
Number of ports 10 6 6 8 6 6
8 ( P.S.E.)
10/100Base-T(X) RJ45 Ports 8 ( P.S.E.) 4 ( P.S.E.) 2+4 ( P.S.E.) 4 ( P.S.E.) IEEE802.3 at 4 ( P.S.E.) 4 ( P.S.E.)
IEEE802.3 af/at IEEE802.3 af IEEE802.3 af IEEE802.3 af IEEE802.3 at IEEE802.3 at
(max.180/120 Watts)
10/100/1000Base-T(X) Ports - - - - - -
2 (Multi/
100Base-FX Fiber Ports - - - Single- - - 2 (Multi/Single-Mode) 2 (Multi/Single-Mode)
Mode)
100Base-FX SFP Ports - 2 - - - -
1000Base-X SFP Ports - - - - - -
Gigabit Combo Ports 2 - - - - -
Power Redundancy
DC Terminal Block 2 2 2 2 2 2
DC Power Jack - 1 1 - - -
Installation
DIN-Rail Mounting ● ● ● ● ● ●
Wall Mounting ● ● ● ● ● ●
Physical Characteristics
Casing Protection IP-30 IP-30 IP-30 IP-30 IP-30 IP-30
26.1(W)x94.9(D) 41(W)x94.9(D)
Dimensions (mm) 74.3(W)x109.2(D)x153.6(H) 54.2(W)x106.1(D)x145.4(H) 54.2(W)x106.1(D)x145.4(H) 26.1(W)x94.9(D)x144.3(H) 41(W)x94.9(D)x144.3(H)
x144.3(H) x144.3(H)
Operating Temperature
-10 to 60°C - - - - - -
-40 to 60°C - - - - - -
-40 to 75°C ● ● ● ● ● ●
Network Redundancy
O-Ring ● ● ● - - -
Open-Ring ● ● ● - - -
O-Chain ● ● ● - - -
MRP *NOTE ● - - - - -
MSTP/RSTP/STP ● RSTP/STP RSTP/STP - - -
Management and
Control
802.1X ● - - - - -
Rate Limit ● - - - - -
Port Mirror ● - - - - -
Port Security ● - - - - -
IGMP v2/v3 ● - - - - -
QoS Port Base/COS/TOS ● - - - - -
Port Trunk Static/LACP ● - - - - -
LLDP ● ● ● - - -
SYSLOG / SMTP /
System Alarm SNMP Trap / Relay SYSLOG / SMTP / SNMP SYSLOG / SMTP / SNMP Trap - - -
Trap / Relay
/ Relay
DHCP Server / Client Client Client - - -
VLAN Port-Based/802.1Q/Q-in-Q/ Port-Based Port-Based - -
GVRP
WEB / Windows Utility /
Management / Configuration SNMP v1,v2c,v3 / Telnet / WEB / Windows Utility / WEB / Windows Utility / - - -
Console(CLI ) SNMP v1,v2c,v3 / Telnet SNMP v1,v2c,v3 / Telnet
Warranty 5 years
Page 1-185/188 1-191 1-194 1-197/200 1-202 1-205
*NOTE: This function is available by request only
