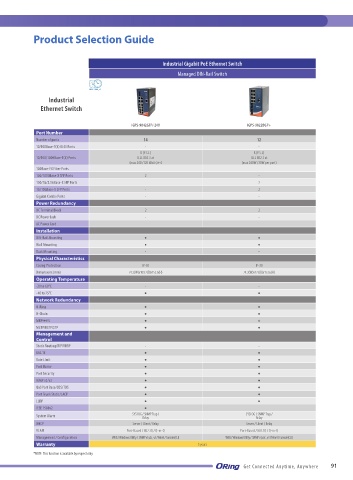

Product Selection Guide

Industrial Gigabit PoE Ethernet Switch
Managed DIN-Rail Switch

IEEE 1588_v2
IEC61850
IEC61850 IEEE 1588_v2
Industrial
Ethernet Switch

IGPS-9842GTP/-24V IGPS-9822DGP+
Port Number
Number of ports 14 12
10/100Base-T(X) RJ45 Ports - -
8 (P.S.E) 8 (P.S.E)
10/100/1000Base-T(X) Ports IEEE 802.3 at IEEE 802.3 at
(max 240 /120 Watts)+4 (max 240W /30W per port)
100Base-FX Fiber Ports - -
100/1000Base-X SFP Ports 2 -
100/1G/2.5GBase-X SFP Ports - 2
1G/10GBase-X SFP Ports - 2
Gigabit Combo Ports - -
Power Redundancy
DC Terminal Block 2 2
DC Power Jack - -
AC Power Cord - -
Installation
DIN-Rail Mounting ● ●
Wall Mounting ● ●
Rack Mounting - -
Physical Characteristics
Casing Protection IP-30 IP-30
Dimensions (mm) 74.3(W)x109.2(D)x153.6(H) 74.3(W)x125(D)x153.6(H)
Operating Temperature
-20 to 60°C - -
-40 to 75°C ● ●
Network Redundancy
O-Ring ● ●
O-Chain ● ●
MRP *NOTE ● ●
MSTP/RSTP/STP ● ●
Management and
Control
Static Routing/RIP/VRRP - -
802.1X ● ●
Rate Limit ● ●
Port Mirror ● ●
Port Security ● ●
IGMP v2/v3 ● ●
QoS Port Base/COS/TOS ● ●
Port Trunk Static/LACP ● ●
LLDP ● ●
IEEE 1588v2 ● -
System Alarm SYSLOG / SNMP Trap / SYSLOG / SNMP Trap /
Relay
Relay
DHCP Server / Client / Relay Server / Client / Relay
VLAN Port-Based / 802.1Q / Q-in-Q Port-Based / 802.1Q / Q-in-Q
Management / Configuration WEB / Windows Utility / SNMP v1,v2c , v3 /Telnet / Console(CLI) WEB / Windows Utility / SNMP v1,v2c , v3 /Telnet / Console(CLI)
Warranty 5 years
*NOTE: This function is available by request only
