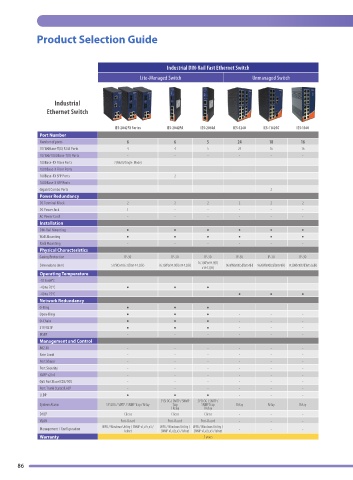

Product Selection Guide

Industrial DIN-Rail Fast Ethernet Switch
Lite-Managed Switch Unmanaged Switch

Industrial
Ethernet Switch

IES-2042FX Series IES-2042PA IES-2050A IES-1240 IES-1162GC IES-1160
Port Number
Number of ports 6 6 5 24 18 16
10/100Base-T(X) RJ45 Ports 4 4 5 24 16 16
10/100/1000Base-T(X) Ports - - - - - -
100Base-FX Fiber Ports 2 (Multi/Single-Mode) - - - - -
1000Base-X Fiber Ports - - - - - -
100Base-FX SFP Ports - 2 - - - -
1000Base-X SFP Ports - - - - - -
Gigabit Combo Ports - - - - 2 -
Power Redundancy
DC Terminal Block 2 2 2 2 2 2
DC Power Jack 1 - - - - -
AC Power Cord - - - - - -
Installation
DIN-Rail Mounting ● ● ● ● ● ●
Wall Mounting ● ● ● ● ● ●
Rack Mounting - - - - - -
Physical Characteristics
Casing Protection IP-30 IP-30 IP-30 IP-30 IP-30 IP-30
26.1(W)x94.9(D)
Dimensions (mm) 52(W)x106.1(D)x144.3(H) 26.1(W)x94.9(D)x144.3(H) 96.4(W)x108.5(D)x154(H) 96.4(W)x108.5(D)x154(H) 74.3(W)x109.2(D)x153.6(H)
x144.3(H)
Operating Temperature
-10 to 60°C - - - - - -
-40 to 70°C ● ● ● - - -
-40 to 75°C - - - ● ● ●
Network Redundancy
O-Ring ● ● ● - - -
Open-Ring ● ● ● - - -
O-Chain ● ● ● - - -
STP/RSTP ● ● ● - - -
MSTP - - - - - -
Management and Control
802.1X - - - - - -
Rate Limit - - - - - -
Port Mirror - - - - - -
Port Security - - - - - -
IGMP v2/v3 - - - - - -
QoS Port Base/COS/TOS - - - - - -
Port Trunk Static/LACP - - - - - -
LLDP ● ● ● - - -
SYSLOG / SMTP / SNMP SYSLOG / SMTP /
System Alarm SYSLOG / SMTP / SNMP Trap / Relay Trap SNMP Trap Relay Relay Relay
/ Relay / Relay
DHCP Client Client Client - - -
VLAN Port-Based Port-Based Port-Based - - -
Management / Configuration WEB / Windows Utility / SNMP v1,v2c,v3 / WEB / Windows Utility / WEB / Windows Utility / - - -
SNMP v1,v2c,v3 /Telnet
SNMP v1,v2c,v3 /Telnet
Telnet
Warranty 5 years
