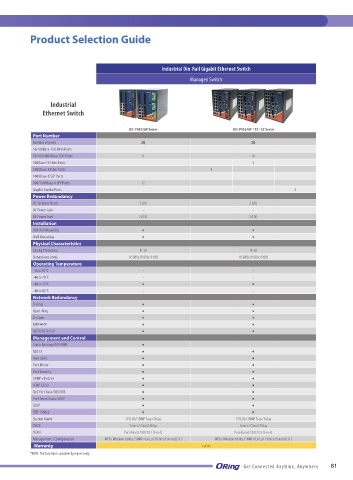

Product Selection Guide

Industrial Din-Rail Gigabit Ethernet Switch
Managed Switch

Industrial
Ethernet Switch

IGS-P9812GP Series IGS-P9164GF / FX / GC Series
Port Number
Number of ports 20 20
10/100Base-T(X) RJ45 Ports - -
10/100/1000Base-T(X) Ports 8 16
100Base-FX Fiber Ports - - 4 -
1000Base-X Fiber Ports - 4 - -
1000Base-X SFP Ports - - - -
100/1000Base-X SFP Ports 12 - - -
Gigabit Combo Ports - - - 4
Power Redundancy
DC Terminal Block 2 (LV) 2 (LV)
DC Power Jack - -
AC Power Cord 2 (HV) 2 (HV)
Installation
DIN-Rail Mounting ● ●
Wall Mounting ● ●
Physical Characteristics
Casing Protection IP-30 IP-30
Dimensions (mm) 115(W)x159(D)x154(H) 115(W)x159(D)x154(H)
Operating Temperature
-10 to 60°C - -
-40 to 70°C - -
-40 to 75°C ● ●
-40 to 85°C - -
Network Redundancy
O-Ring ● ●
Open-Ring ● ●
O-Chain ● ●
MRP *NOTE ● ●
MSTP/RSTP/STP ● ●
Management and Control
Static Routing/RIP/VRRP ● -
802.1X ● ●
Rate Limit ● ●
Port Mirror ● ●
Port Security ● ●
SNMP v1/v2/v3 ● ●
IGMP v2/v3 ● ●
QoS Port Base/COS/TOS ● ●
Port Trunk Static/LACP ● ●
LLDP ● ●
IEEE 1588v2 ● ●
System Alarm SYSLOG/ SNMP Trap / Relay SYSLOG/ SNMP Trap / Relay
DHCP Server / Client/ Relay Server / Client/ Relay
VLAN Port-Based / 802.1Q / Q-in-Q Port-Based / 802.1Q / Q-in-Q
Management / Configuration WEB / Windows Utility / SNMP v1,v2c,v3 /Telnet /Console(CLI ) WEB / Windows Utility / SNMP v1,v2c,v3 /Telnet /Console(CLI )
Warranty 5 years
*NOTE: This function is available by request only
