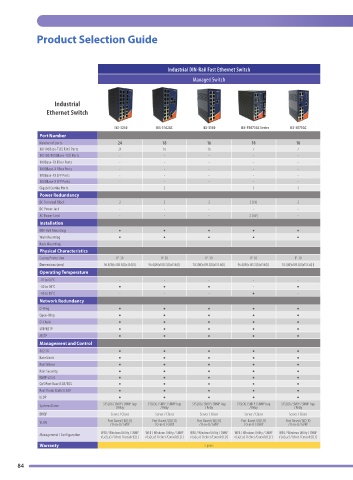

Product Selection Guide

Industrial DIN-Rail Fast Ethernet Switch
Managed Switch

Industrial
Ethernet Switch

IES-3240 IES-3162GC IES-3160 IES-P3073GC Series IES-3073GC
Port Number
Number of ports 24 18 16 10 10
10/100Base-T(X) RJ45 Ports 24 16 16 7 7
10/100/1000Base-T(X) Ports - - - - -
100Base-FX Fiber Ports - - - - -
1000Base-X Fiber Ports - - - - -
100Base-FX SFP Ports - - - - -
1000Base-X SFP Ports - - - - -
Gigabit Combo Ports - 2 - 3 3
Power Redundancy
DC Terminal Block 2 2 2 2 (LV) 2
DC Power Jack - - - - -
AC Power Cord - - - 2 (HV) -
Installation
DIN-Rail Mounting ● ● ● ● ●
Wall Mounting ● ● ● ● ●
Rack Mounting - - - - -
Physical Characteristics
Casing Protection IP-30 IP-30 IP-30 IP-30 IP-30
Dimensions (mm) 96.4(W)x108.5(D)x154(H) 96.4(W)x108.5(D)x154(H) 74.3(W)x109.2(D)x153.6(H) 96.4(W)x145.5(D)x154(H) 74.3(W)x109.2(D)x153.6(H)
Operating Temperature
-10 to 60°C - - - - -
-40 to 70°C ● ● ● - ●
-40 to 85°C - - - ● -
Network Redundancy
O-Ring ● ● ● ● ●
Open-Ring ● ● ● ● ●
O-Chain ● ● ● ● ●
STP/RSTP ● ● ● ● ●
MSTP ● ● ● ● ●
Management and Control
802.1X ● ● ● ● ●
Rate Limit ● ● ● ● ●
Port Mirror ● ● ● ● ●
Port Security ● ● ● ● ●
IGMP v2/v3 ● ● ● ● ●
QoS Port Base/COS/TOS ● ● ● ● ●
Port Trunk Static/LACP ● ● ● ● ●
LLDP ● ● ● ● ●
System Alarm SYSLOG / SMTP / SNMP Trap SYSLOG / SMTP / SNMP Trap SYSLOG / SMTP / SNMP Trap SYSLOG / SMTP / SNMP Trap SYSLOG / SMTP / SNMP Trap
/ Relay
/ Relay
/ Relay
/ Relay
/ Relay
DHCP Server / Client Server / Client Server / Client Server / Client Server / Client
VLAN Port-Based / 802.1Q Port-Based / 802.1Q Port-Based / 802.1Q Port-Based / 802.1Q Port-Based / 802.1Q
/ Q-in-Q / GVRP
/ Q-in-Q / GVRP
/ Q-in-Q / GVRP
/ Q-in-Q / GVRP
/ Q-in-Q / GVRP
WEB / Windows Utility / SNMP
WEB / Windows Utility / SNMP
WEB / Windows Utility / SNMP
Management / Configuration WEB / Windows Utility / SNMP v1,v2c,v3 /Telnet /Console(CLI ) WEB / Windows Utility / SNMP v1,v2c,v3 /Telnet /Console(CLI ) v1,v2c,v3 /Telnet /Console(CLI )
v1,v2c,v3 /Telnet /Console(CLI)
v1,v2c,v3 /Telnet /Console(CLI )
Warranty 5 years
