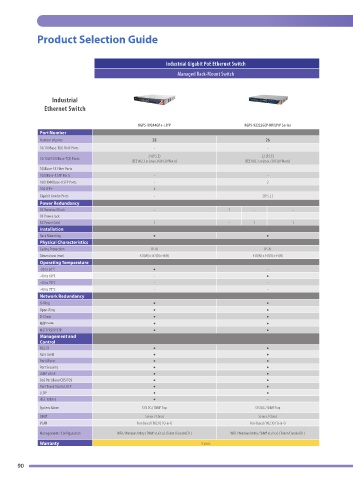

Product Selection Guide

Industrial Gigabit PoE Ethernet Switch
Managed Rack-Mount Switch

Industrial
Ethernet Switch

RGPS-R9244GP+-LP/P RGPS-92222GCP-NP/LP/P Series
Port Number
Number of ports 28 26
10/100Base-T(X) RJ45 Ports - -
10/100/1000Base-T(X) Ports 24 (P.S.E) 22 (P.S.E)
IEEE 802.3 at (max.360/720 Watts) IEEE 802.3 at (max.720/320 Watts)
100Base-FX Fiber Ports - -
1000Base-X SFP Ports - -
100/1000Base-X SFP Ports - 2
10G SFP+ 4 -
Gigabit Combo Ports - 2(P.S.E.)
Power Redundancy
DC Terminal Block - 1 - -
DC Power Jack - - - -
AC Power Cord 1 - 1 1
Installation
Rack Mounting ● ●
Physical Characteristics
Casing Protection IP-20 IP-20
Dimensions (mm) 431(W) x 342(D) x 44(H) 431(W) x 342(D) x 44(H)
Operating Temperature
-20 to 60°C ● -
-40 to 60°C - ●
-40 to 70°C - -
-40 to 75°C - -
Network Redundancy
O-Ring ● ●
Open-Ring ● ●
O-Chain ● ●
MRP *NOTE ● ●
MSTP/RSTP/STP ● ●
Management and
Control
802.1X ● ●
Rate Limit ● ●
Port Mirror ● ●
Port Security ● ●
IGMP v2/v3 ● ●
QoS Port Base/COS/TOS ● ●
Port Trunk Static/LACP ● ●
LLDP ● ●
IEEE 1588v2 ● -
System Alarm SYSLOG / SNMP Trap SYSLOG / SNMP Trap
DHCP Server / Client Server / Client
VLAN Port-Based / 802.1Q / Q-in-Q Port-Based / 802.1Q / Q-in-Q

Management / Configuration WEB / Windows Utility / SNMP v1,v2c,v3 /Telnet /Console(CLI ) WEB / Windows Utility / SNMP v1,v2c,v3 /Telnet /Console(CLI )
Warranty 5 years

90
