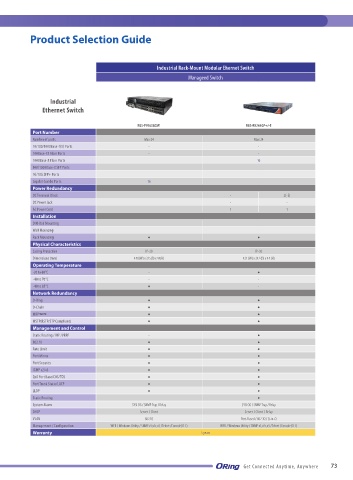

Product Selection Guide

Industrial Rack-Mount Modular Ehernet Switch
Manageed Switch

Industrial
Ethernet Switch

RGS-P9160GCM1 RGS-R9244GP+/-E
Port Number
Number of ports Max:24 Max:24
10/100/1000Base-T(X) Ports - -
100Base-FX Fiber Ports - -
1000Base-X Fiber Ports - 16
100/1000Base-X SFP Ports - -
1G/10G SFP+ Ports - -
Gigabit Combo Ports 16 -
Power Redundancy
DC Terminal Block - - 2(-E)
DC Power Jack - - -
AC Power Cord - 1 1
Installation
DIN-Rail Mounting - -
Wall Mounting - -
Rack Mounting ● ●
Physical Characteristics
Casing Protection IP-30 IP-30
Dimensions (mm) 440(W) x 325(D) x 44(H) 431 (W) x 342 (D) x 44 (H)
Operating Temperature
-20 to 60°C - ●
-40 to 70°C - -
-40 to 85°C ● -
Network Redundancy
O-Ring ● ●
O-Chain ● ●
MRP *NOTE ● ●
MSTP(RSTP/STP Compliant) ● ●
Management and Control
Static Routing / RIP /VRRP - ●
802.1X ● ●
Rate Limit ● ●
Port Mirror ● ●
Port Security ● ●
IGMP v2/v3 ● ●
QoS Port Base/COS/TOS ● ●
Port Trunk Static/LACP ● ●
LLDP ● ●
Static Routing - ●
System Alarm SYSLOG / SNMP Trap / Relay SYSLOG / SNMP Trap / Relay
DHCP Server / Client Server / Client / Relay
VLAN 802.1Q Port-Based / 802.1Q / Q-in-Q
Management / Configuration WEB / Windows Utility / SNMP v1,v2c,v3 /Telnet /Console(CLI ) WEB / Windows Utility / SNMP v1,v2c,v3 /Telnet /Console(CLI )
Warranty 5 years
