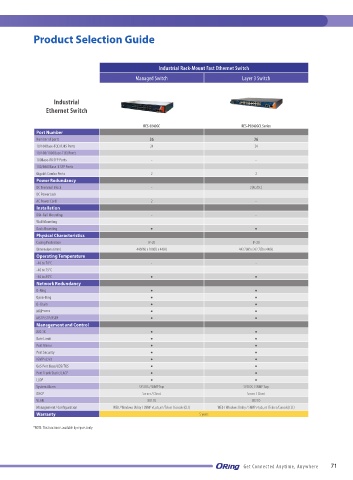

Product Selection Guide
Industrial Rack-Mount Fast Ethernet Switch
Managed Switch Layer 3 Switch
Industrial
Ethernet Switch
RES-9242GC RES-P9242GCL Series
Port Number
Number of ports 26 26
10/100Base-T(X) RJ45 Ports 24 24
10/100/1000Base-T(X) Ports - -
100Base-FX SFP Ports - -
100/1000Base-X SFP Ports - -
Gigabit Combo Ports 2 2
Power Redundancy
DC Terminal Block - 2(AC/DC)
DC Power Jack - -
AC Power Cord 2 -
Installation
DIN-Rail Mounting - -
Wall Mounting - -
Rack Mounting ● ●
Physical Characteristics
Casing Protection IP-20 IP-20
Dimensions (mm) 440(W) x 200(D) x 44(H) 443.7(W) x 262.7(D) x 44(H)
Operating Temperature
-40 to 70°C - -
-40 to 75°C - -
-40 to 85°C ● ●
Network Redundancy
O-Ring ● ●
Open-Ring ● ●
O-Chain ● ●
MRP *NOTE ● ●
MSTP/STP/RSTP ● ●
Management and Control
802.1X ● ●
Rate Limit ● ●
Port Mirror ● ●
Port Security ● ●
IGMP v2/v3 ● ●
QoS Port Base/COS/TOS ● ●
Port Trunk Static/LACP ● ●
LLDP ● ●
System Alarm SYSLOG / SNMP Trap SYSLOG / SNMP Trap
DHCP Server / Client Server / Client
VLAN 802.1Q 802.1Q
Management / Configuration WEB / Windows Utility / SNMP v1,v2c,v3 /Telnet /Console(CLI ) WEB / Windows Utility / SNMP v1,v2c,v3 /Telnet /Console(CLI )
Warranty 5 years
*NOTE: This function is available by request only
