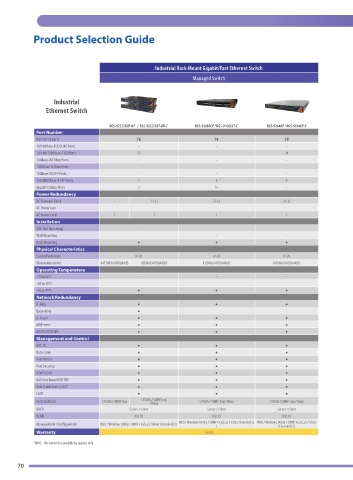

Product Selection Guide

Industrial Rack-Mount Gigabit/Fast Ethernet Switch
Managed Switch

Industrial
Ethernet Switch

RGS-92222GCP-NP / RGS-92222GCP-NP-E RGS-9168GCP / RGS-9168GCP-E RGS-9244GP / RGS-9244GP-E
Port Number
Number of ports 26 24 28
10/100Base-T(X) RJ45 Ports - - -
10/100/1000Base-T(X) Ports 22 - 24
100Base-FX Fiber Ports - - -
1000Base-X Fiber Ports - -
100Base-FX SFP Ports - - -
100/1000Base-X SFP Ports 2 8 4
Gigabit Combo Ports 2 16 -
Power Redundancy
DC Terminal Block - 2 (-E) 2 (-E) 2 (-E)
DC Power Jack - - -
AC Power Cord 1 1 1 1
Installation
DIN-Rail Mounting - - -
Wall Mounting - - -
Rack Mounting ● ● ●
Physical Characteristics
Casing Protection IP-20 IP-20 IP-20
Dimensions (mm) 443.7(W)x200(D)x44(H) 431(W)x342(D)x44(H) 431(W)x342(D)x44(H) 431(W)x342(D)x44(H)
Operating Temperature
-10 to 60°C - - -
-40 to 70°C - - -
-40 to 75°C ● ● ●
Network Redundancy
O-Ring ● ● ●
Open-Ring ● - -
O-Chain ● ● ●
MRP *NOTE ● ● ●
MSTP/STP/RSTP ● ● ●
Management and Control
802.1X ● ● ●
Rate Limit ● ● ●
Port Mirror ● ● ●
Port Security ● ● ●
IGMP v2/v3 ● ● ●
QoS Port Base/COS/TOS ● ● ●
Port Trunk Static/LACP ● ● ●
LLDP ● ● ●
System Alarm SYSLOG / SNMP Trap SYSLOG / SNMP Trap SYSLOG / SNMP Trap / Relay SYSLOG / SNMP Trap / Relay
/ Relay
DHCP Server / Client Server / Client Server / Client
VLAN 802.1Q 802.1Q 802.1Q
Management / Configuration WEB / Windows Utility / SNMP v1,v2c,v3 /Telnet /Console(CLI ) WEB / Windows Utility / SNMP v1,v2c,v3 /Telnet /Console(CLI WEB / Windows Utility / SNMP v1,v2c,v3 /Telnet
)
/Console(CLI )
Warranty 5 years
*NOTE: This function is available by request only

70
