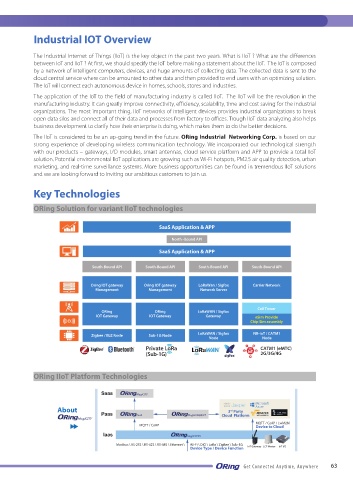

Industrial IOT Overview
The Industrial Internet of Things (IIoT) is the key object in the past two years. What is IIoT ? What are the differences
between IoT and IIoT ? At first, we should specify the IoT before making a statement about the IIoT. The IoT is composed
by a network of intelligent computers, devices, and huge amounts of collecting data. The collected data is sent to the
cloud central service where can be amounted to other data and then provided to end users with an optimizing solution.
The IoT will connect each autonomous device in homes, schools, stores and industries.
The application of the IoT to the field of manufacturing industry is called IIoT. The IIoT will be the revolution in the
manufacturing industry. It can greatly improve connectivity, efficiency, scalability, time and cost saving for the industrial
organizations. The most important thing, IIoT networks of intelligent devices provides industrial organizations to break
open data silos and connect all of their data and processes from factory to offices. Trough IIoT data analyzing also helps
business development to clarify how their enterprise is doing, which makes them to do the better decisions.
The IIoT is considered to be an up-going trend in the future. ORing Industrial Networking Corp. is based on our
strong experience of developing wireless communication technology. We incorporated our technological strength
with our products – gateways, I/O modules, smart antennas, cloud service platform and APP to provide a total IIoT
solution. Potential environmental IIoT applications are growing such as Wi-Fi hotspots, PM2.5 air quality detection, urban
marketing, and real-time surveillance systems. More business opportunities can be found in tremendous IIoT solutions
and we are looking forward to inviting our ambitious customers to join us.
Key Technologies
ORing Solution for variant IIoT technologies
SaaS Application & APP
North -Bound API
SaaS Application & APP
South-Bound API South-Bound API South-Bound API South-Bound API
Oring IOT gateway Oring IOT gateway LoRaWan / Sigfox Carrier Network
Management Management Network Server
Cell Tower
ORing ORing LoRaWAN / Sigfox
IOT Gateway IOT Gateway Gateway eSim Provide
Chip Sim assembly
Zigbee / BLE Node Sub-1G Node LoRaWAN / Sigfox NB-IoT / CATM1
Node Node
Private LoRa CATM1 (eMTC)
(Sub-1G) 2G/3G/4G
ORing IIoT Platform Technologies
Saas MagiCITY
About 3 Party
rd
Paas PaaS MagiCONNECT Cloud Platform
MagiCITY
MQTT / CaAP / LwM2M
MQTT / CoAP Device to Cloud
Iaas MagiCCESS
Modbus \ RS-232 \ RS-422 \ RS-485 \ Ethernet \ Wi-Fi \ DIO \ LoRa \ ZigBee \ Sub-1G IoT Gateway LCP Master IoT I/O
Device Type / Device Function
