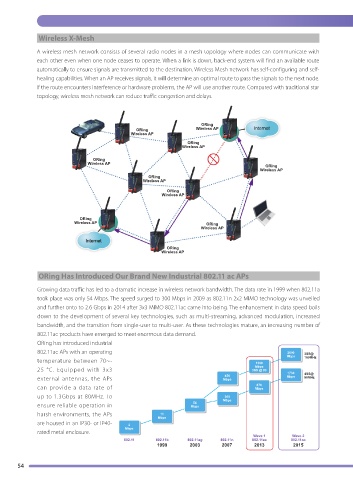

Wireless X-Mesh

A wireless mesh network consists of several radio nodes in a mesh topology where nodes can communicate with
each other even when one node ceases to operate. When a link is down, back-end system will find an available route
automatically to ensure signals are transmitted to the destination. Wireless Mesh network has self-configuring and self-
healing capabilities. When an AP receives signals, it will determine an optimal route to pass the signals to the next node.
If the route encounters interference or hardware problems, the AP will use another route. Compared with traditional star
topology, wireless mesh network can reduce traffic congestion and delays.

ORing
ORing Wireless AP
Wireless AP
ORing
Wireless AP
ORing
Wireless AP ORing
Wireless AP
ORing
Wireless AP
ORing
Wireless AP

ORing
Wireless AP ORing
Wireless AP

ORing
Wireless AP

ORing Has Introduced Our Brand New Industrial 802.11 ac APs

Growing data traffic has led to a dramatic increase in wireless network bandwidth. The data rate in 1999 when 802.11a
took place was only 54 Mbps. The speed surged to 300 Mbps in 2009 as 802.11n 2x2 MIMO technology was unveiled
and further onto to 2.6 Gbps in 2014 after 3x3 MIMO 802.11ac came into being. The enhancement in data speed boils
down to the development of several key technologies, such as multi-streaming, advanced modulation, increased
bandwidth, and the transition from single-user to multi-user. As these technologies mature, an increasing number of
802.11ac products have emerged to meet enormous data demand.
ORing has introduced industrial
802.11ac APs with an operating 2600 3SS@
Mbps 160MHz
temperature between 70~- 1300
Mbps
25 °C. Equipped with 3x3 3SS @ 80
1730 4SS@
456
external antennas, the APs Mbps Mbps 80MHz
870
can provide a data rate of Mbps
up to 1.3Gbps at 80MHz. To 300
Mbps
54
ensure reliable operation in Mbps
harsh environments, the APs 11
Mbps
are housed in an IP30- or IP40- 2
Mbps
rated metal enclosure.
Wave 1 Wave 2
802.11 802.11b 802.11ag 802.11n 802.11ac 802.11ac
1999 2003 2007 2013 2015
54
