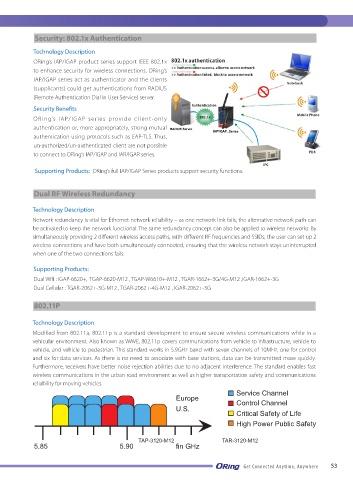

Page 55 - 2023-ORing_Guidebook-ok(電子書轉檔用)

Security: 802.1x Authentication

Technology Description
ORing’s IAP/IGAP product series support IEEE 802.1x
to enhance security for wireless connections. ORing’s
IAP/IGAP series act as authenticator and the clients
(supplicants) could get authentications from RADIUS
(Remote Authentication Dial In User Service) server.
Security Benefits
ORing’s IAP/IGAP series provide client-only
authentication or, more appropriately, strong mutual
authentication using protocols such as EAP-TLS. Thus,
un-authorized/un-authenticated client are not possible
to connect to ORing’s IAP/IGAP and IAR/IGAR series.

Supporting Products: ORing’s full IAP/IGAP Series products support security functions.

Dual RF Wireless Redundancy

Technology Description

Network redundancy is vital for Ethernet network reliability – as one network link fails, the alternative network path can
be activated to keep the network functional. The same redundancy concept can also be applied to wireless networks. By
simultaneously providing 2 different wireless access paths, with different RF frequencies and SSIDs, the user can set up 2
wireless connections and have both simultaneously connected, ensuring that the wireless network stays uninterrupted
when one of the two connections fails.

Supporting Products:
Dual Wifi : IGAP-6620+, TGAP-6620-M12 , TGAP-W6610+-M12 , TGAR-1662+-3G/4G-M12 ,IGAR-1662+-3G
Dual Cellular : TGAR-2062+-3G-M12 , TGAR-2062+-4G-M12 , IGAR-2062+-3G

802.11P

Technology Description
Modified from 802.11a, 802.11p is a standard development to ensure secure wireless communications while in a
vehicular environment. Also known as WAVE, 802.11p covers communications from vehicle to infrastructure, vehicle to
vehicle, and vehicle to pedestrian. This standard works in 5.9GHz band with seven channels of 10MHz, one for control
and six for data services. As there is no need to associate with base stations, data can be transmitted more quickly.
Furthermore, receivers have better noise rejection abilities due to no adjacent interference. The standard enables fast
wireless communications in the urban road environment as well as higher transportation safety and communications
reliability for moving vehicles.
Service Channel
Europe Control Channel
U.S.
Critical Safety of Life
High Power Public Safety

TAP-3120-M12 TAR-3120-M12
5.85 5.90 fin GHz
