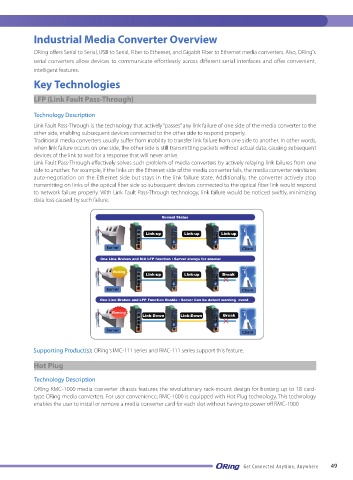

Industrial Media Converter Overview

ORing offers Serial to Serial, USB to Serial, Fiber to Ethernet, and Gigabit Fiber to Ethernet media converters. Also, ORing's
serial converters allow devices to communicate effortlessly across different serial interfaces and offer convenient,
intelligent features.
Key Technologies

LFP (Link Fault Pass-Through)

Technology Description

Link Fault Pass-Through is the technology that actively “passes” any link failure of one side of the media converter to the
other side, enabling subsequent devices connected to the other side to respond properly.
Traditional media converters usually suffer from inability to transfer link failure from one side to another. In other words,
when link failure occurs on one side, the other side is still transmitting packets without actual data, causing subsequent
devices of the link to wait for a response that will never arrive.
Link Fault Pass-Through effectively solves such problem of media converters by actively relaying link failures from one
side to another. For example, if the links on the Ethernet side of the media converter fails, the media converter reinitiates
auto-negotiation on the Ethernet side but stays in the link failure state. Additionally, the converter actively stop
transmitting on links of the optical fiber side so subsequent devices connected to the optical fiber link would respond
to network failure properly. With Link Fault Pass-Through technology, link failure would be noticed swiftly, minimizing
data loss caused by such failure.

Normal Status

Link-up Link-up Link-up

One Line Broken and N/A LFP function : Server always for answer

Waiting
Link-up Link-up Break

One Line Broken and LFP Function Enable : Server Can be detect warning event

Warning
Link-Down Link-Down Break

Supporting Product(s): ORing's IMC-111 series and RMC-111 series support this feature.

Hot Plug

Technology Description
ORing RMC-1000 media converter chassis features the revolutionary rack-mount design for hosting up to 18 card-
type ORing media converters. For user convenience, RMC-1000 is equipped with Hot Plug technology. This technology
enables the user to install or remove a media converter card for each slot without having to power off RMC-1000
