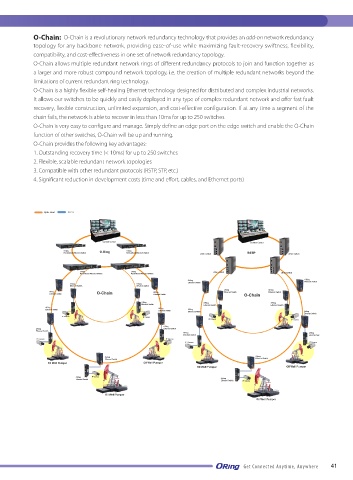

O-Chain: O-Chain is a revolutionary network redundancy technology that provides an add-on network redundancy
topology for any backbone network, providing ease-of-use while maximizing fault-recovery swiftness, flexibility,
compatibility, and cost-effectiveness in one set of network redundancy topology.
O-Chain allows multiple redundant network rings of different redundancy protocols to join and function together as
a larger and more robust compound network topology, i.e. the creation of multiple redundant networks beyond the
limitations of current redundant ring technology.
O-Chain is a highly flexible self-healing Ethernet technology designed for distributed and complex industrial networks.
It allows our switches to be quickly and easily deployed in any type of complex redundant network and offer fast fault
recovery, flexible construction, unlimited expansion, and cost-effective configuration. If at any time a segment of the
chain fails, the network is able to recover in less than 10ms for up to 250 switches.
O-Chain is very easy to configure and manage. Simply define an edge port on the edge switch and enable the O-Chain
function of other switches, O-Chain will be up and running.
O-Chain provides the following key advantages:
1. Outstanding recovery time (< 10ms) for up to 250 switches
2. Flexible, scalable redundant network topologies
3. Compatible with other redundant protocols (RSTP, STP, etc.)
4. Significant reduction in development costs (time and effort, cables, and Ethernet ports)

Optic Fiber Optic Fiber

Control Center Control Center
ORing O-Ring ORing RSTP
Rack-Mount Ethernet Switch Rack-Mount Ethernet Switch other switch other switch

ORing ORing other switch
Rack-Mount Ethernet Switch Rack-Mount Ethernet Switch other switch
ORing
ORing Ethernet Switch
ORing ORing Ethernet Switch
Ethernet Switch Ethernet Switch
ORing ORing
ORing O-Chain ORing Ethernet Switch Ethernet Switch
Ethernet Switch Ethernet Switch O-Chain
ORing ORing ORing
Ethernet Switch Ethernet Switch Ethernet Switch
ORing ORing
Ethernet Switch ORing
Ethernet Switch Ethernet Switch ORing
Ethernet Switch
IP Camera IP Camera
IP Camera IP Camera
ORing
ORing Ethernet Switch
Ethernet Switch
ORing ORing
Ethernet Switch Ethernet Switch
IP Camera IP Camera
IP Camera IP Camera
ORing ORing
Ethernet Switch Ethernet Switch
Oil Well Pumper Oil Well Pumper
Oil Well Pumper Oil Well Pumper
ORing IP Camera
Ethernet Switch ORing
Ethernet Switch IP Camera
Oil Well Pumper
Oil Well Pumper
